SB0606WC02-RGB
lmages are for reference only.SB0606WC02-RGB
LED RGB CLEAR 4SMD
Datasheet4-SMD, No Lead
12,401 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 635nm Red, 518nm Green, 460nm Blue LED Indication - Discrete 3V Red, 3V Green, 3V Blue 4-SMD, No Lead
SB0606WC02-RGB
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | SpectraBright |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 35mcd Red, 75mcd Green, 20mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 3V Red, 3V Green, 3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 635nm Red, 518nm Green, 460nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Height (Max) | 0.70mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

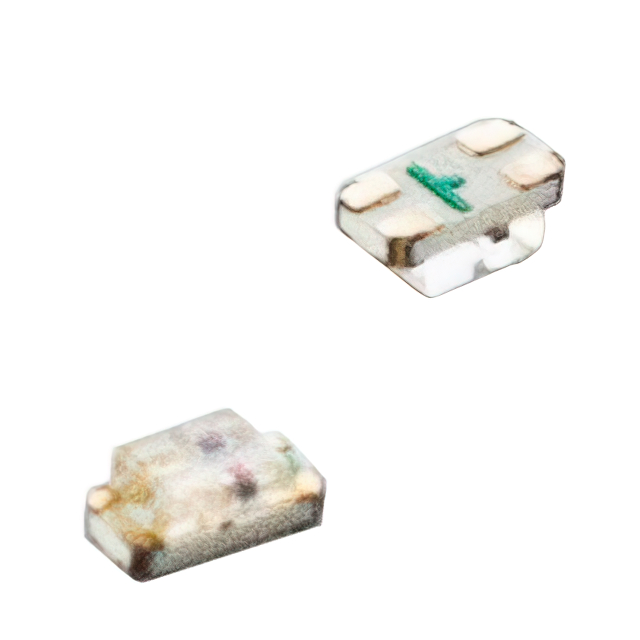

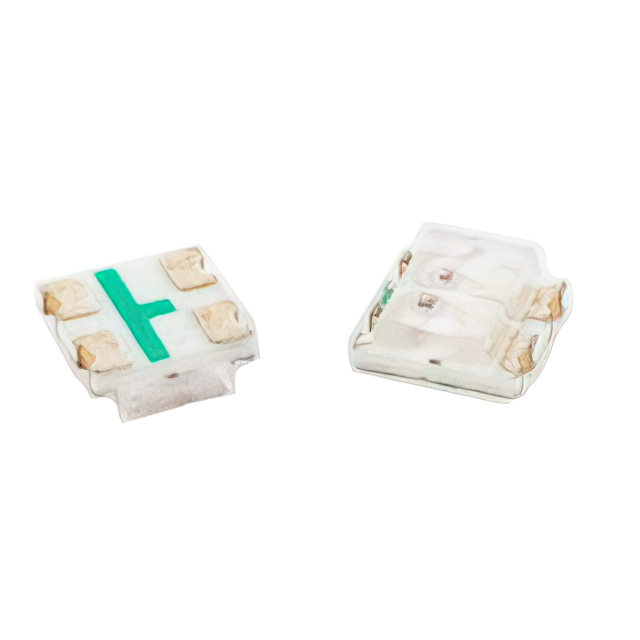

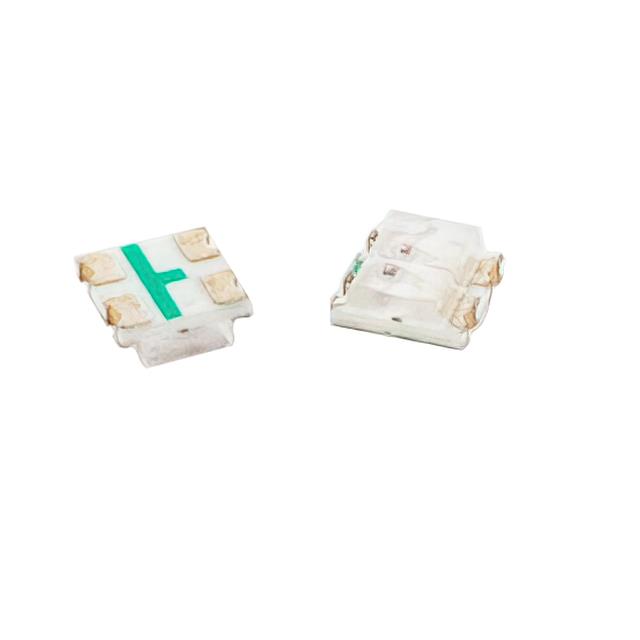

| Part Number | SB0603WC01-RG | SB0606WC01-RG | SB0606WC01-RGB | LA E67B-V1AA-34-1-50-R18-Z |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | |||
| Description | LED GREEN/RED CLEAR 0603 SMD | LED GREEN/RED CLEAR 4SMD | LED RGB CLEAR 4SMD | LED AMBER CLEAR 4PLCC SMD |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
