Product CatalogPart Number
SER2009-301MLD
Manufacturer
CoilcraftDescription
FIXED IND 300NH 54A 0.74MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
74,236 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SER2009-301MLD
SER2009-301MLD

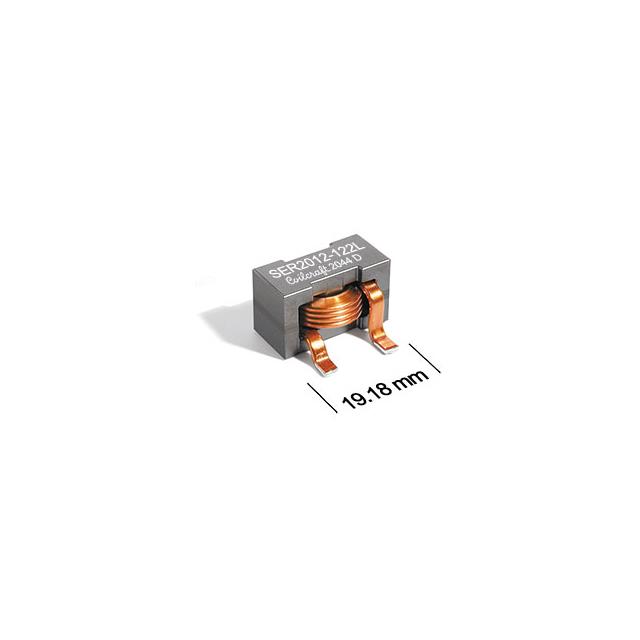

lmages are for reference only.Payment Methods
Delivery Services
300 nH Shielded Wirewound Inductor 54 A 0.74mOhm Max Nonstandard
Quick Inquiry
SER2009-301MLD
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | SER2000 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 300 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 54 A |
| Current - Saturation (Isat) | 100A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.74mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 550MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.755" L x 0.365" W (19.18mm x 9.27mm) |
| Height - Seated (Max) | 0.340" (8.64mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SER2009-102MLD | SER2009-122MLD | SER2009-202MLD | SER2009-501MLD |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ||||
| Description | FIXED IND 1UH 54A 0.74MOHM SM | FIXED IND 1.2UH 54A 740MOHM SM | FIXED IND 2UH 54A 740MOHM SM | FIXED IND 500NH 54A 0.74MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
