Product CatalogPart Number
SER2010-901MLD
Manufacturer
CoilcraftDescription
FIXED IND 900NH 45A 1MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
25,339 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SER2010-901MLD
SER2010-901MLD

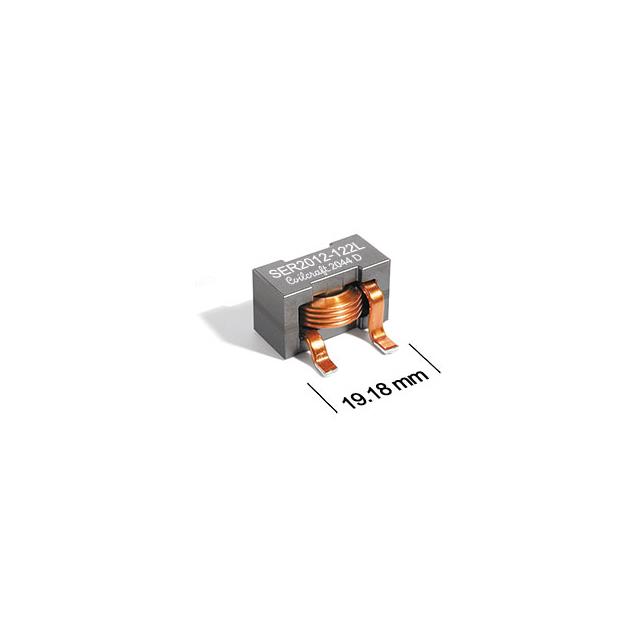

lmages are for reference only.Payment Methods
Delivery Services
900 nH Shielded Wirewound Inductor 45 A 1mOhm Max Nonstandard
Quick Inquiry
SER2010-901MLD
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | SER2000 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 900 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 45 A |
| Current - Saturation (Isat) | 48A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 96MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 2010 |
| Size / Dimension | 0.755" L x 0.365" W (19.18mm x 9.27mm) |
| Height - Seated (Max) | 0.370" (9.40mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SER2010-102MLD | SER2010-122MLD | SER2010-202MLD | SER2010-301MLD |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ||||
| Description | FIXED IND 1UH 45A 1MOHM SM | FIXED IND 1.2UH 45A 1MOHM SM | FIXED IND 2UH 45A 1MOHM SM | FIXED IND 300NH 45A 1MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
