Product CatalogPart Number
SF-0603SP080-2
Manufacturer
Bourns Inc.Description
FUSE BOARD MNT 800MA 32VDC 0603
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
32,091 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SF-0603SP080-2
SF-0603SP080-2

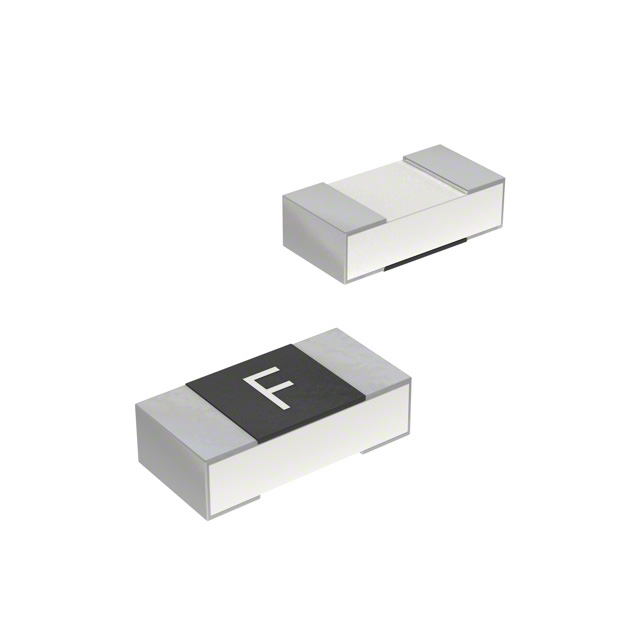

lmages are for reference only.Payment Methods
Delivery Services
800 mA AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Quick Inquiry
SF-0603SP080-2
Specifications
| Category | Circuit Protection - Fuses - |
| Manufacturer | Bourns Inc. |
| Series | SinglFuse™ SF-0603SP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Current Rating (Amps) | 800 mA |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 32 V |
| Response Time | Slow Blow |
| Package / Case | 0603 (1608 Metric) |
| Breaking Capacity @ Rated Voltage | 50A |
| Melting I²t | 0.024 |
| Approval Agency | UL |
| Operating Temperature | -40°C ~ 105°C |
| Color | - |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Base Product Number | SF-0603 |
| DC Cold Resistance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | SF-0603S040-2 | SF-0603S063-2 | SF-0603S070-2 | SF-0603S080-2 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE BRDMT 400MA 35VAC/50DC 0603 | FUSE BOARD MNT 630MA 32VDC 0603 | FUSE BRDMT 700MA 35VAC/32DC 0603 | FUSE BOARD MNT 800MA 32VDC 0603 |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
