SFH 4235-EB-XX

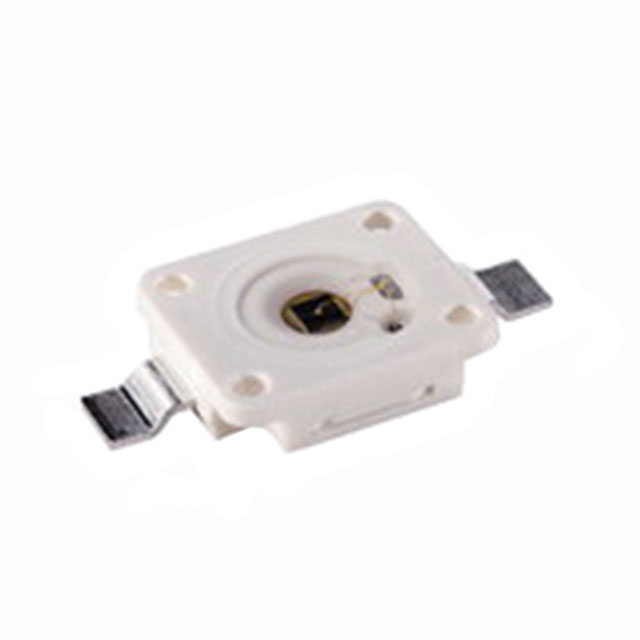

lmages are for reference only.SFH 4235-EB-XX
LED PLATINUM DRAGON SMD
Datasheet2-SMD, Gull Wing, Exposed Pad
85,315 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 860nm 3V 1A 320mW/sr @ 1A (Typ) 120° 2-SMD, Gull Wing, Exposed Pad
SFH 4235-EB-XX
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | Platinum DRAGON |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 320mW/sr @ 1A (Typ) |
| Wavelength | 860nm |
| Voltage - Forward (Vf) (Typ) | 3V |
| Viewing Angle | 120° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing, Exposed Pad |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | SFH 4235-Z | SFH 0490 C1006 | SFH 0590 E7884 | SFH 400 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | EMITTER IR 860NM 1A SMD | OSLON | LED OSLON BLACK | EMITTER IR 950NM 300MA TO-18 |
| Series | Platinum DRAGON | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
