Product CatalogPart Number
SFH 4235-Z
Manufacturer
ams-OSRAM USA INC.Description
EMITTER IR 860NM 1A SMD
Datasheet
DatasheetPackage
2-SMD, Gull Wing
In Stock
99,315 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SFH 4235-Z
SFH 4235-Z
lmages are for reference only.Payment Methods
Delivery Services
Infrared (IR) Emitter 860nm 3V 1A 320mW/sr @ 1A 120° 2-SMD, Gull Wing
Quick Inquiry
SFH 4235-Z
Specifications
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | Platinum DRAGON |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 320mW/sr @ 1A |
| Wavelength | 860nm |
| Voltage - Forward (Vf) (Typ) | 3V |
| Viewing Angle | 120° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Gull Wing |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

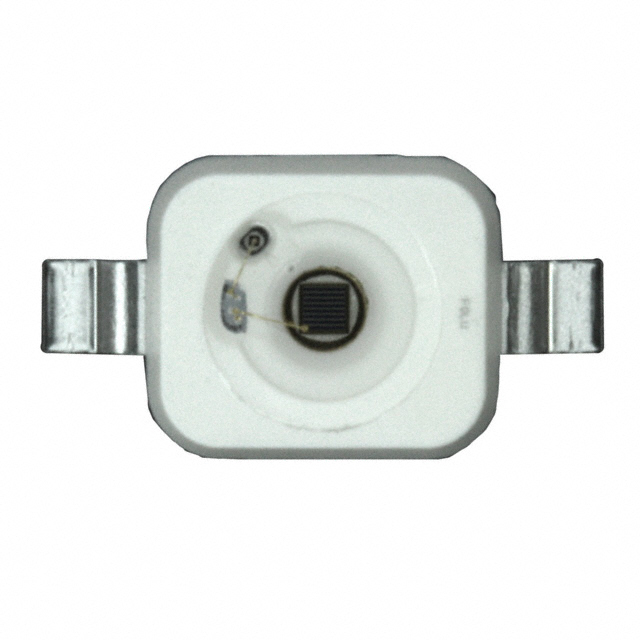

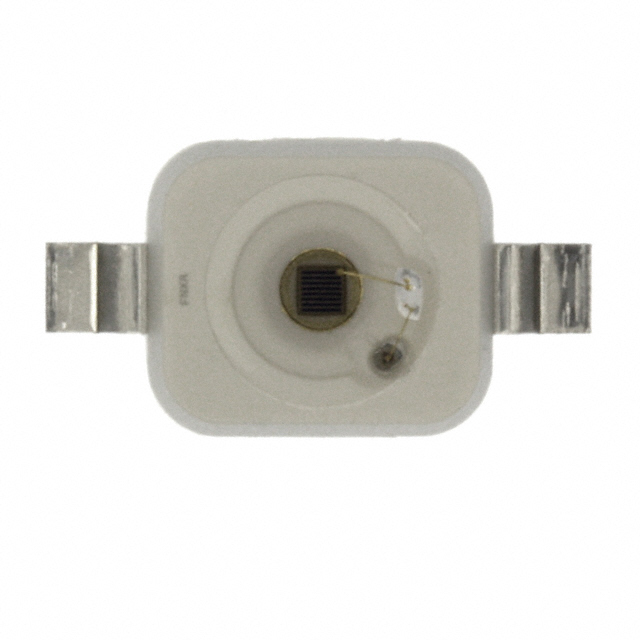

| Part Number | SFH 4235-EB-XX | SFH 4230 | SFH 4230-Z | SFH 4231 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED PLATINUM DRAGON SMD | EMITTER IR 850NM 1A SMD | EMITTER IR 850NM HI POWER SMD | EMITTER IR 940NM 1A SMD |
| Series | Platinum DRAGON | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
