SH50C-2.0-470
lmages are for reference only.SH50C-2.0-470
FIXED IND 470UH 2A 170 MOHM TH
DatasheetRadial, Vertical (Open)
22,821 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 µH Unshielded Toroidal Inductor 2 A 170mOhm Max Radial, Vertical (Open)
SH50C-2.0-470
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Amgis, LLC |
| Series | SH50 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.252" L x 0.701" W (31.80mm x 17.81mm) |
| Height - Seated (Max) | 1.382" (35.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

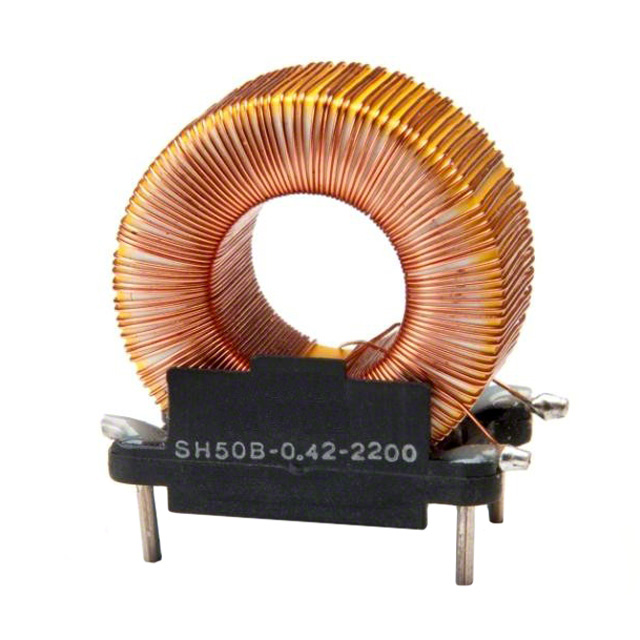

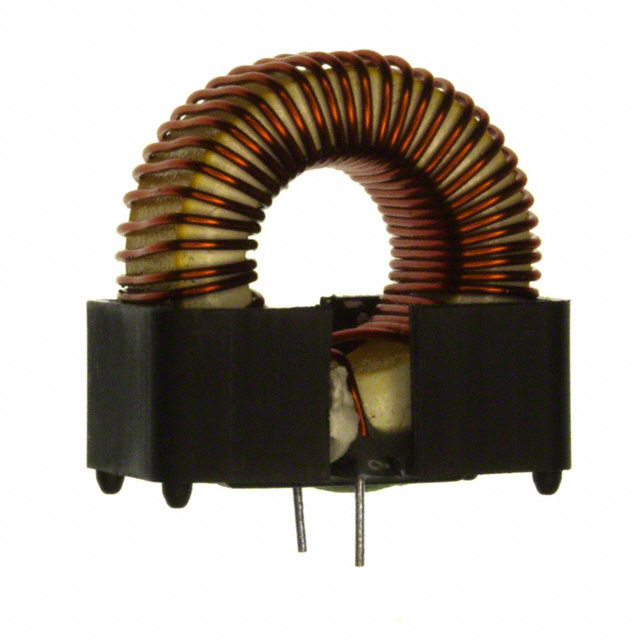

| Part Number | SH50C-2.0-150 | SH50B-0.42-2200 | SH50B-0.42-2200 | SH50B-0.62-1500 |
| Manufacturer | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 150UH 2A 100 MOHM TH | FIXED IND 2.2MH 420MA 1.8 OHM TH | FIXED IND 2.2MH 420MA 1.8 OHM TH | FIXED IND 1.5MH 620MA 1 OHM TH |
| Series | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| Packaging | Tray | Tray | Tray | Tray |
