SH50C-3.0-220
lmages are for reference only.SH50C-3.0-220
FIXED IND 220UH 3A 70 MOHM TH
DatasheetRadial, Vertical (Open)
95,478 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 µH Unshielded Toroidal Inductor 3 A 70mOhm Max Radial, Vertical (Open)
SH50C-3.0-220
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Amgis, LLC |
| Series | SH50 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 70mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.252" L x 0.701" W (31.80mm x 17.81mm) |
| Height - Seated (Max) | 1.382" (35.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SH50C-3.0-100 | SH50C-3.0-150 | SH50C-3.0-330 | SH50C-3.0-47 |
| Manufacturer | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

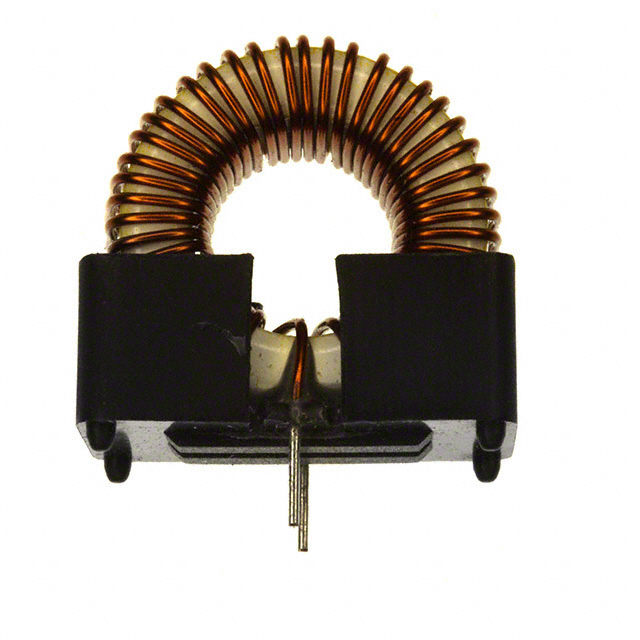

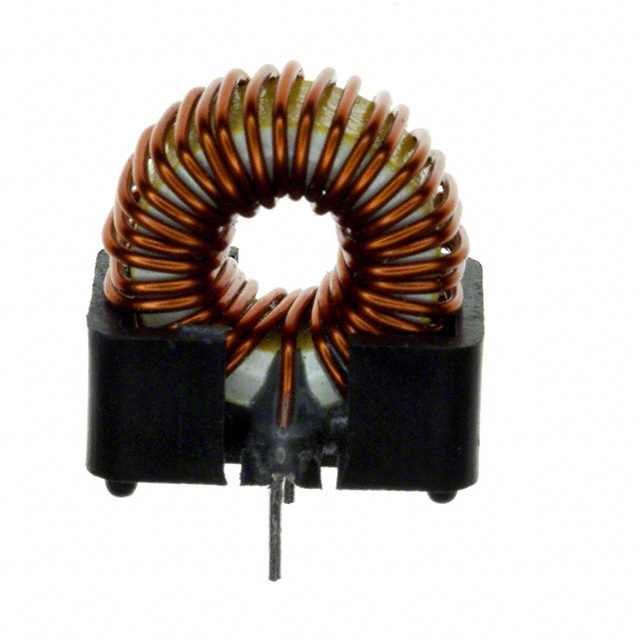

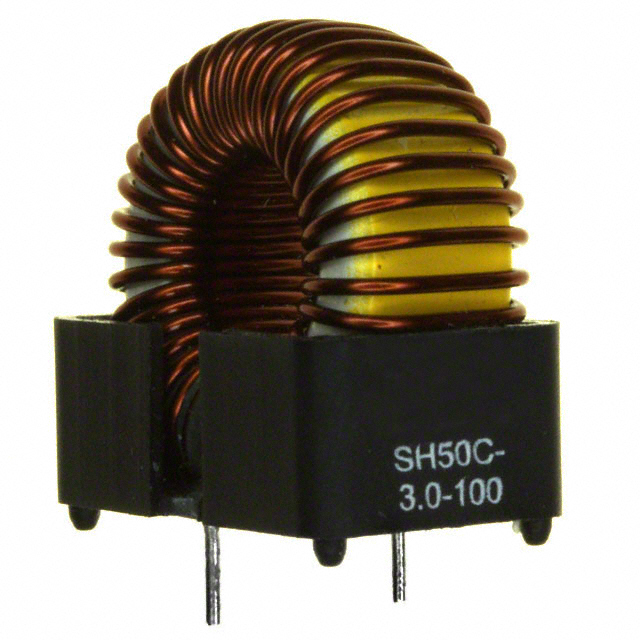

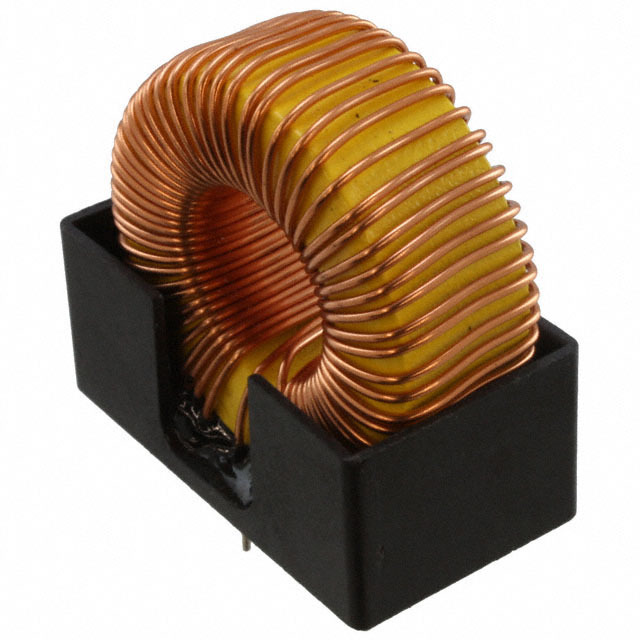

| Description | FIXED IND 100UH 3A 40 MOHM TH | FIXED IND 150UH 3A 100 MOHM TH | FIXED IND 330UH 3A 150 MOHM TH | FIXED IND 47UH 3A 50 MOHM TH |
| Series | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| Packaging | Tray | Tray | Tray | Tray |
