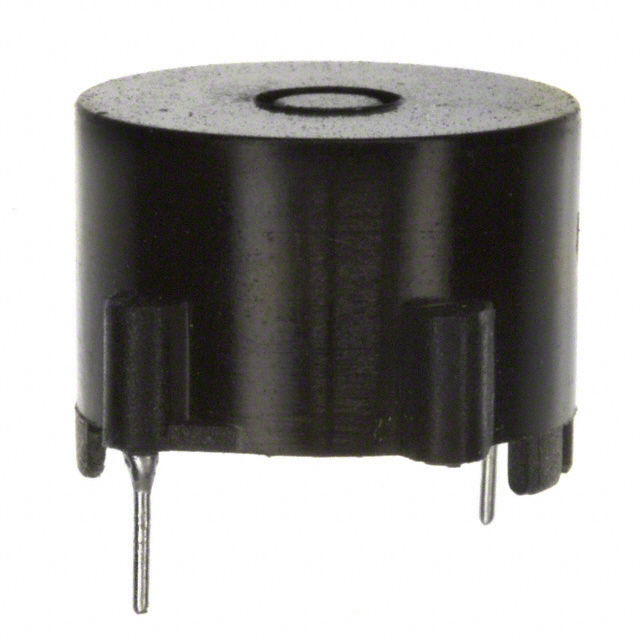

SH50F-0.90-330
lmages are for reference only.SH50F-0.90-330
FIXED IND 330UH 900MA 740MOHM TH
DatasheetHorizontal, 4 PC Pin
50,018 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
302 µH Unshielded Toroidal Inductor 900 mA 740mOhm Max Horizontal, 4 PC Pin
SH50F-0.90-330
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Amgis, LLC |
| Series | SH50 |
| Packaging | Bulk |
| RoHS Status | |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 302 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 740mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, 4 PC Pin |
| Supplier Device Package | Horizontal, 4 PC Pin |
| Size / Dimension | 0.689" L x 0.669" W (17.50mm x 17.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

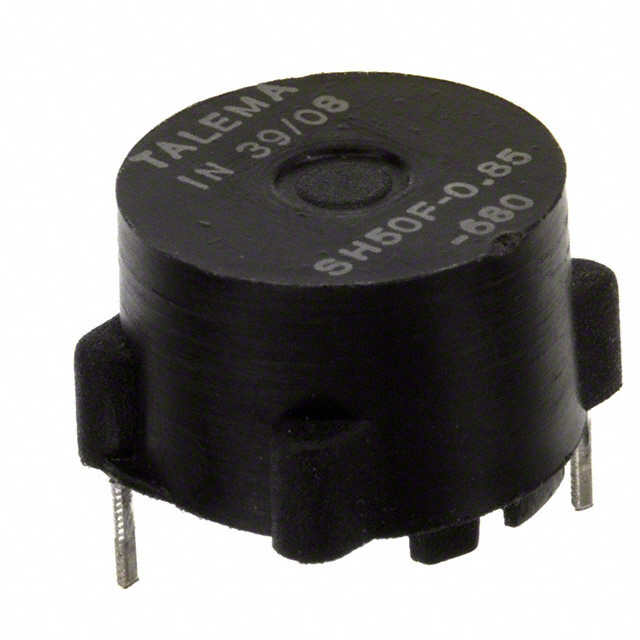

| Part Number | SH50F-0.85-680 | SH50F-0.9-330 | SH50B-0.42-2200 | SH50B-0.42-2200 |
| Manufacturer | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 680UH 850MA 1.25OHM TH | FIXED IND 330UH 900MA 740MOHM TH | FIXED IND 2.2MH 420MA 1.8 OHM TH | FIXED IND 2.2MH 420MA 1.8 OHM TH |
| Series | Amgis, LLC | Amgis, LLC | Amgis, LLC | Amgis, LLC |
| Packaging | Tray | Tray | Tray | Tray |
