SIB422EDK-T1-GE3

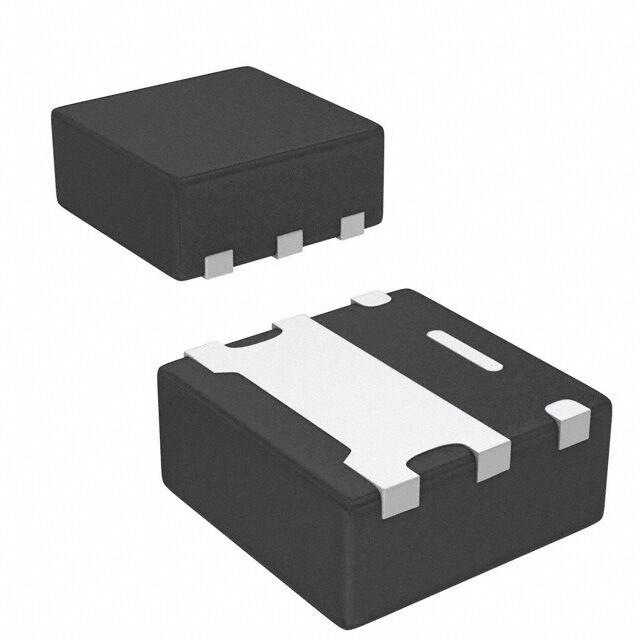

lmages are for reference only.SIB422EDK-T1-GE3
MOSFET N-CH 20V 9A PPAK SC75-6
DatasheetPowerPAK® SC-75-6
91,124 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 9A (Tc) 2.5W (Ta), 13W (Tc) Surface Mount PowerPAK® SC-75-6
SIB422EDK-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 13W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SC-75-6 |
| Package / Case | PowerPAK® SC-75-6 |
| Base Product Number | SIB422 |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 8 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | SIB422EDK-T4-GE3 | SFP9Z34 | SUP50010E-GE3 | SFW9530TM |
| Manufacturer | Vishay Siliconix | onsemi | Vishay Siliconix | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 20V 7.1A/9A PPAK | MOSFET P-CH 60V 18A TO220-3 | MOSFET N-CH 60V 150A TO220AB | MOSFET P-CH 100V 10.5A D2PAK |
| Series | TrenchFET® | - | TrenchFET® | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Bulk |
