SIB912DK-T1-GE3
lmages are for reference only.SIB912DK-T1-GE3
MOSFET 2N-CH 20V 1.5A PPAK8X8
DatasheetPowerPAK® SC-75-6L Dual
17,269 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 1.5A 3.1W Surface Mount PowerPAK® SC-75-6L Dual
SIB912DK-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.5A |
| Rds On (Max) @ Id, Vgs | 216mOhm @ 1.8A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3nC @ 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 95pF @ 10V |
| Power - Max | 3.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SC-75-6L Dual |
| Supplier Device Package | PowerPAK® SC-75-6L Dual |
| Base Product Number | SIB912 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
.jpg "TPC8211(TE12L,Q,M)") |
 |

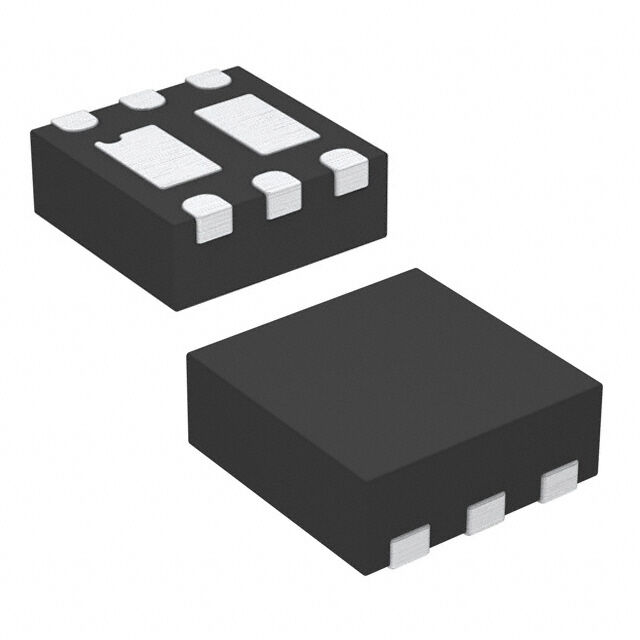

| Part Number | SIB911DK-T1-GE3 | SIB914DK-T1-GE3 | TPC8211(TE12L,Q,M) | SI3590DV-T1-E3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Toshiba Semiconductor and Storage | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2P-CH 20V 2.6A PPAK8X8 | MOSFET 2N-CH 8V 1.5A PPAK8X8 | MOSFET 2N-CH 30V 5.5A 8SOP | MOSFET N/P-CH 30V 2.5A 6TSOP |
| Series | TrenchFET® | TrenchFET® | - | TrenchFET® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
