SIDR680DP-T1-GE3

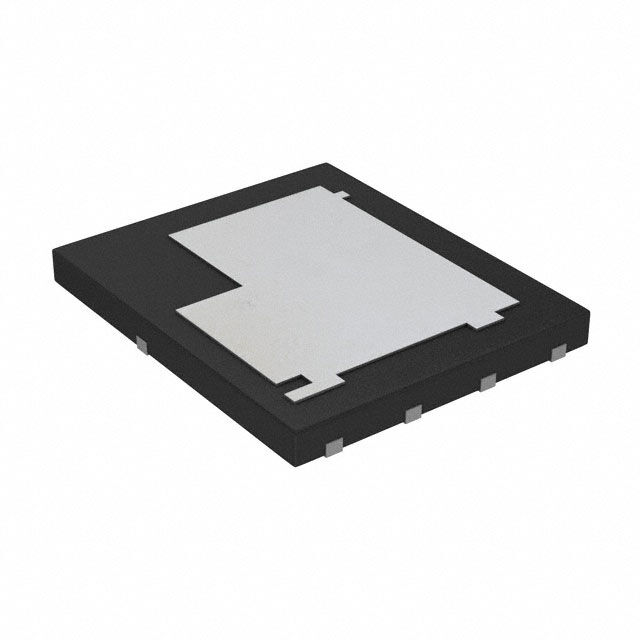

lmages are for reference only.SIDR680DP-T1-GE3
MOSFET N-CH 80V 32.8A/100A PPAK
DatasheetPowerPAK® SO-8
31,272 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 80 V 32.8A (Ta), 100A (Tc) 6.25W (Ta), 125W (Tc) Surface Mount PowerPAK® SO-8DC
SIDR680DP-T1-GE3
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® Gen IV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 80 V |
| Current - Continuous Drain (Id) @ 25°C | 32.8A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.9mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 3.4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5150 pF @ 40 V |
| FET Feature | - |
| Power Dissipation (Max) | 6.25W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8DC |
| Package / Case | PowerPAK® SO-8 |
| Base Product Number | SIDR680 |
| Gate Charge (Qg) (Max) @ Vgs | 105 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | SIDR680ADP-T1-RE3 | SIDR680DP-T1-RE3 | SFP9Z34 | SUP50010E-GE3 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | onsemi | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 80V 30.7A/137A PPAK | N-CHANNEL 80-V (D-S) MOSFET | MOSFET P-CH 60V 18A TO220-3 | MOSFET N-CH 60V 150A TO220AB |
| Series | TrenchFET® Gen IV | TrenchFET® Gen IV | - | TrenchFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
