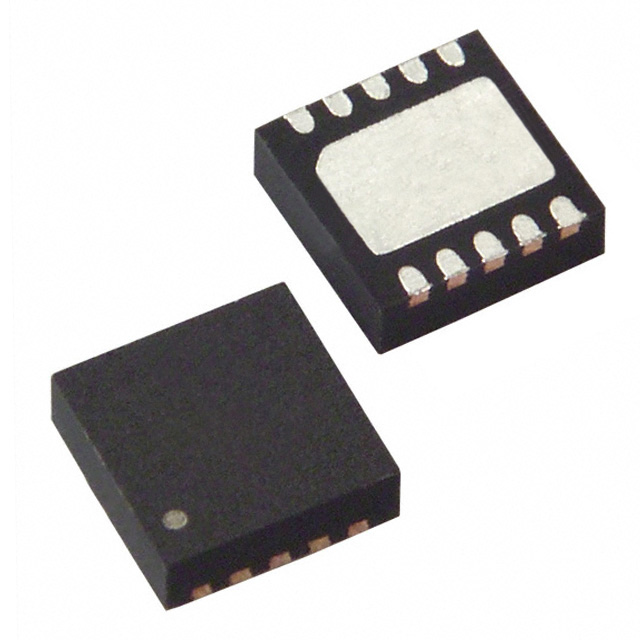

SIP12117DMP-T1-GE4
lmages are for reference only.SIP12117DMP-T1-GE4
IC REG BUCK ADJ 3A 10DFN
Datasheet10-VFDFN Exposed Pad
47,868 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 3A 10-VFDFN Exposed Pad
SIP12117DMP-T1-GE4
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Vishay Siliconix |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 3A |
| Frequency - Switching | 600kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Base Product Number | SIP12117 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

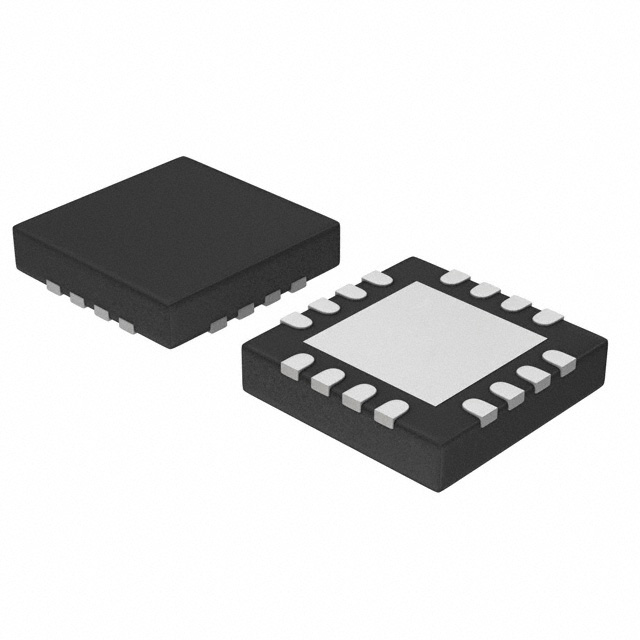

| Part Number | SIP12107DMP-T1-GE3 | SIP12108ADMP-T1GE4 | SIP12108DMP-T1GE4 | SIP12109DMP-T1-GE4 |
| Manufacturer | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REG BUCK ADJ 3A 16QFN | IC REG BUCK ADJ 5A 16MLP | IC REG BUCK ADJ 5A 16MLP | IC REG BUCK ADJ 4A 16MLP |
| Series | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix | Vishay Siliconix |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
