SIT5356AE-FP-28N0-19.200000
lmages are for reference only.Payment Methods
Delivery Services
19.2 MHz TCXO LVCMOS Oscillator 2.8V 10-SMD, No Lead
SIT5356AE-FP-28N0-19.200000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | SiTime |
| Series | SiT5356, Elite Platform™ |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | TCXO |
| Frequency | 19.2 MHz |
| Function | - |
| Output | LVCMOS |
| Voltage - Supply | 2.8V |
| Frequency Stability | ±200ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | - |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|

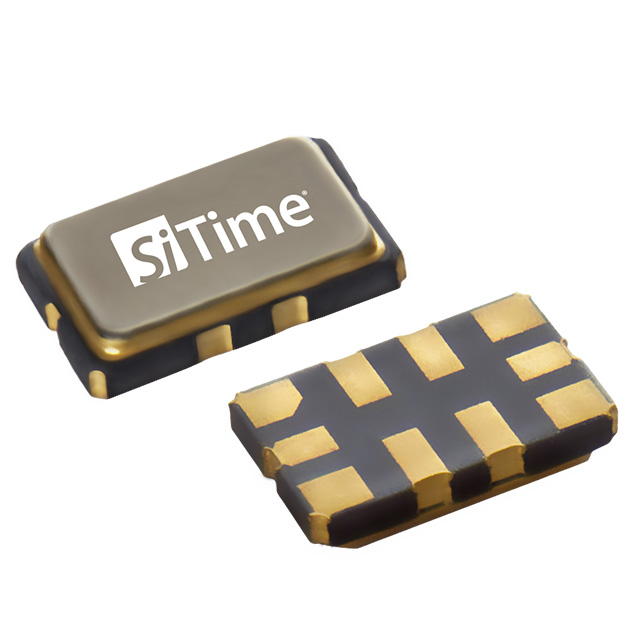

| Part Number | SIT5356AE-FP-28N0-19.200000 | SIT5356AE-FP-28N0-19.440000 | SIT5356AE-FP-28N0-10.000000 | SIT5356AE-FP-28N0-10.949297 |
| Manufacturer | SiTime | SiTime | SiTime | SiTime |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC TCXO 19.2000MHZ LVCMOS | MEMS OSC TCXO 19.4400MHZ LVCMOS | MEMS OSC TCXO 10.0000MHZ LVCMOS | MEMS OSC TCXO 10.949297MHZ |
| Series | SiTime | SiTime | SiTime | SiTime |
| Packaging | Strip | Strip | Strip | Strip |
