SM8S15A-002HE3_A/I
lmages are for reference only.SM8S15A-002HE3_A/I
TVS DIODE 15VWM DO218AB
DatasheetDO-218AB
42,284 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.4V Clamp 270A Ipp Tvs Diode Surface Mount DO-218AB
SM8S15A-002HE3_A/I
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | PAR® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 15V |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 24.4V |
| Current - Peak Pulse (10/1000µs) | 270A |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | SM8S15 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |

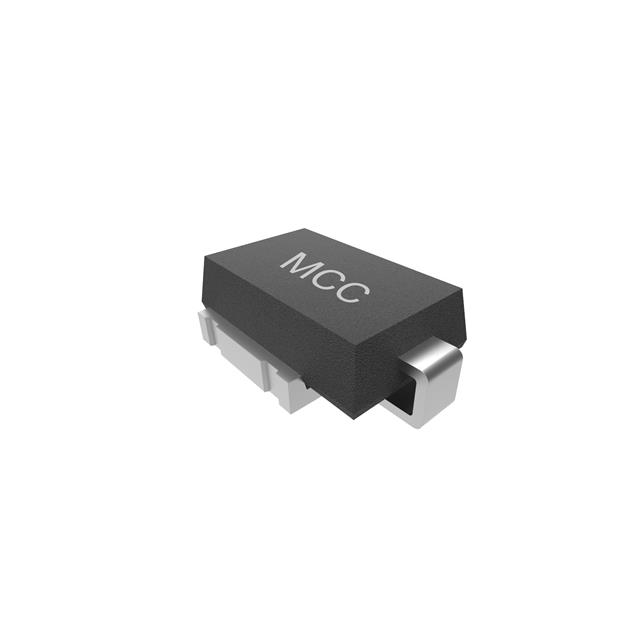

| Part Number | SM8S15A-002HE3/2D | SM8S15A-AU_R2_000A1 | SM8S15A-Q1 | SM8S15A-TP |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Panjit International Inc. | ANBON SEMICONDUCTOR (INT'L) LIMITED | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | TVS DIODE 15VWM 24.4VC DO218AB | 6.6KW SURFACE MOUNT TRANSIENT VO | SURFACE MOUNT TRANSIENT VOLTAGE | Interface |
| Series | Vishay General Semiconductor - Diodes Division | Panjit International Inc. | ANBON SEMICONDUCTOR (INT'L) LIMITED | Micro Commercial Co |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
