SM8S15CA-Q1
lmages are for reference only.SM8S15CA-Q1
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetDO-218AB
64,676 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.4V Clamp 270A Ipp Tvs Diode Surface Mount DO-218AB
SM8S15CA-Q1
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | ANBON SEMICONDUCTOR (INT'L) LIMITED |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 15V |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 24.4V |
| Current - Peak Pulse (10/1000µs) | 270A |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

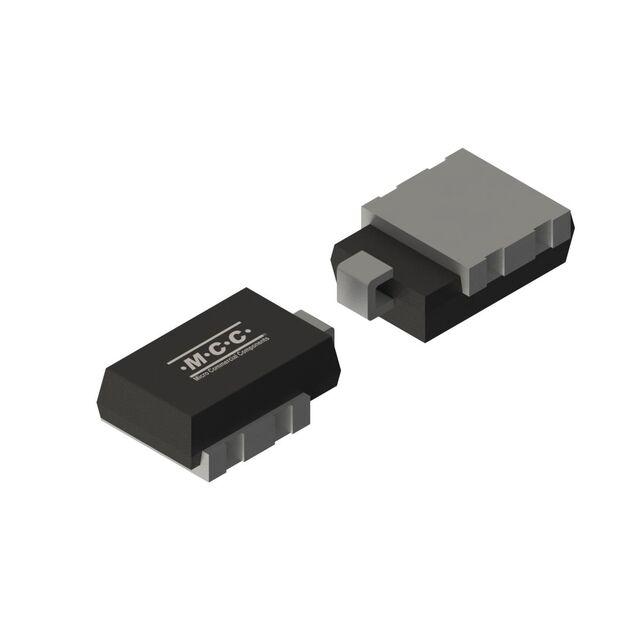

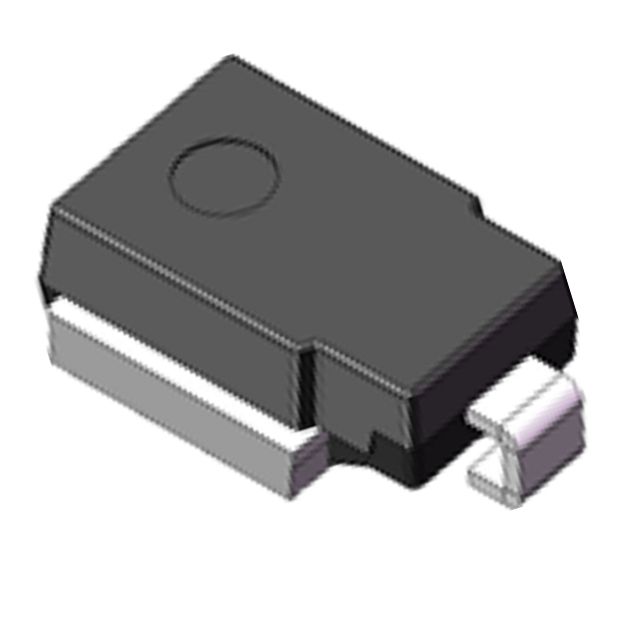

| Part Number | SM8S15CA | SM8S15CA-TP | SM8S15CAH | SM8S15CAHE3-TP |
| Manufacturer | MDD | Micro Commercial Co | Eaton - Electronics Division | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE BI 15VWM DO218AB | Interface | TVS DIODE 15VWM BI | TVS DIODES |
| Series | MDD | Micro Commercial Co | Eaton - Electronics Division | Micro Commercial Co |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
