SM8S18A

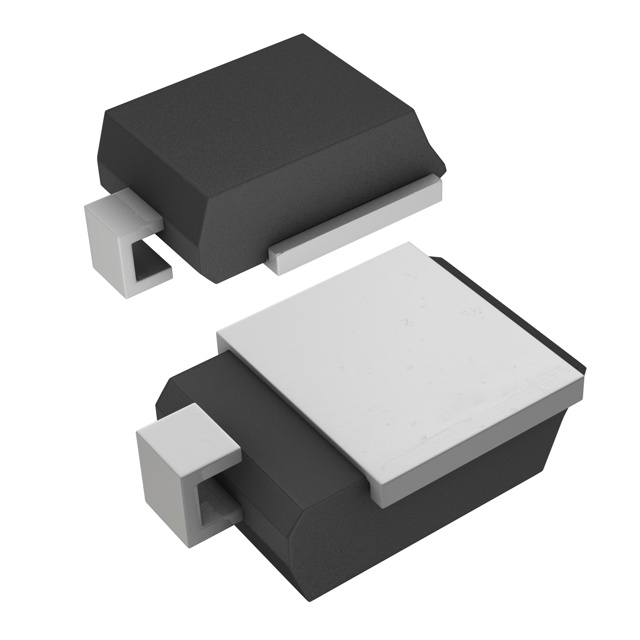

lmages are for reference only.SM8S18A
TVS 6600W 18VWM UniDir DO-218AB
DatasheetDO-218AB
87,052 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
29.2V Clamp 226A Ipp Tvs Diode Surface Mount DO-218AB
SM8S18A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Lumimax Optoelectronic Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 18V |
| Voltage - Breakdown (Min) | 20V |
| Voltage - Clamping (Max) @ Ipp | 29.2V |
| Current - Peak Pulse (10/1000µs) | 226A |
| Power - Peak Pulse | 6600W (6.6kW) |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-218AB |
| Supplier Device Package | DO-218AB |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
|
 |
 |
| Part Number | SM8S18A | SM8S18A | SM8S18A-2HE3/2D | SM8S18A-AU_R2_000A1 |
| Manufacturer | MDD | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE UNI 18VWM DO218AB | TVS SMTO HI-POWER | TVS DIODE 18VWM 29.2VC DO218AB | 6.6KW SURFACE MOUNT TRANSIENT VO |
| Series | MDD | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | Panjit International Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
