SMAJE5-0AH

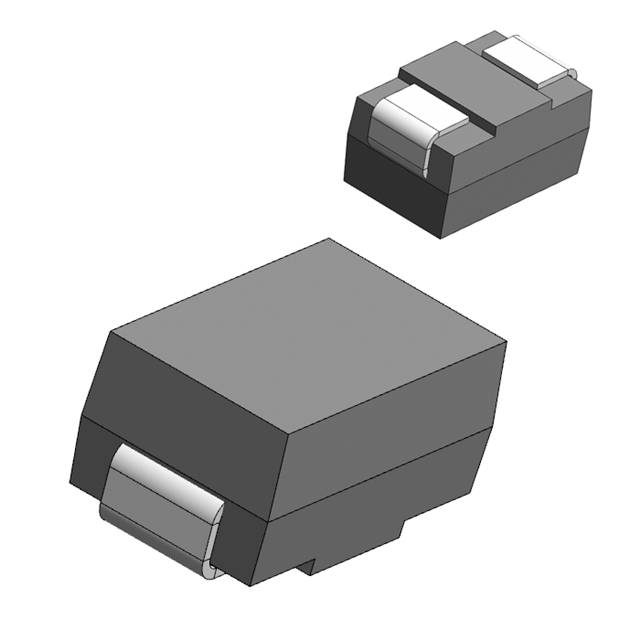

lmages are for reference only.SMAJE5-0AH
TVS DIODE 5VWM 9.2VC UNI
DatasheetDO-214AC, SMA
88,125 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.2V Clamp 43.5A Ipp Tvs Diode Surface Mount SMA
SMAJE5-0AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | SMAJExxH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Current - Peak Pulse (10/1000µs) | 43.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMAJE5-0A | SMAJE5-0CA | SMAJE5-0CAH | SMAJ10 |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Taiwan Semiconductor Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 5VWM 9.2VC SMA | TVS DIODE 5VWM 9.2VC SMA | TVS DIODE 5VWM BI | 400W, 12.4V, 10%, UNIDIRECTIONAL |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
