Product CatalogPart Number
SMAJE5-0A
Manufacturer
Eaton - Electronics DivisionDescription
TVS DIODE 5VWM 9.2VC SMA
Datasheet
DatasheetPackage
DO-214AC, SMA
In Stock
35,597 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMAJE5-0A
SMAJE5-0A

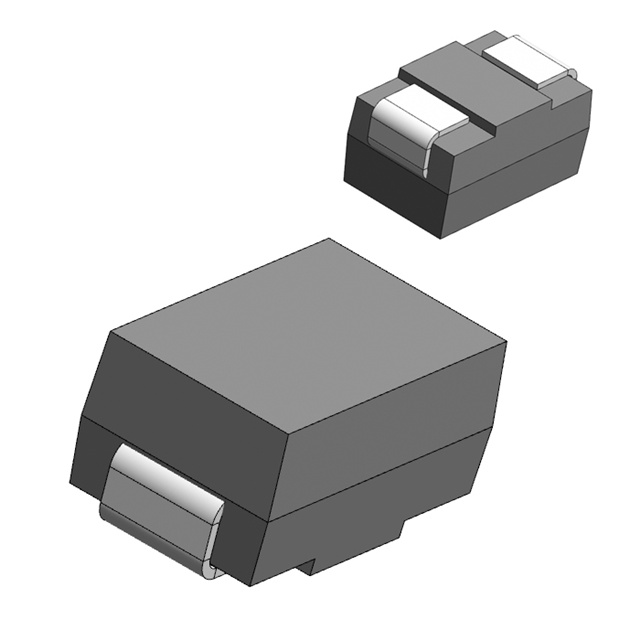

lmages are for reference only.Payment Methods
Delivery Services
9.2V Clamp 43.5A Ipp Tvs Diode Surface Mount SMA
Quick Inquiry
SMAJE5-0A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Eaton - Electronics Division |
| Series | SMAJE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 9.2V |
| Current - Peak Pulse (10/1000µs) | 43.5A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | SMA |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | SMAJE5-0AH | SMAJE5-0CA | SMAJE5-0CAH | SMAJE51A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | TVS DIODE 5VWM 9.2VC UNI | TVS DIODE 5VWM 9.2VC SMA | TVS DIODE 5VWM BI | TVS DIODE 51VWM 82.4VC SMA |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
