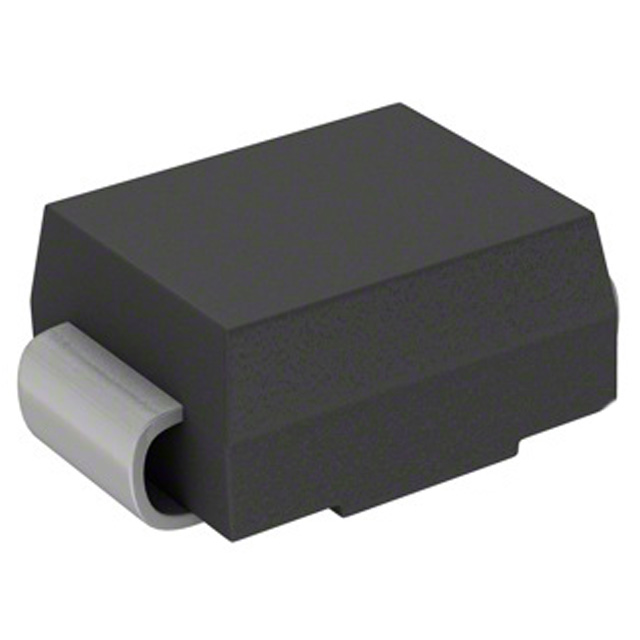

22V Clamp 28A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
SMBJ12C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMBJ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 22V |
| Current - Peak Pulse (10/1000µs) | 28A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMB) |
| Base Product Number | SMBJ12 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

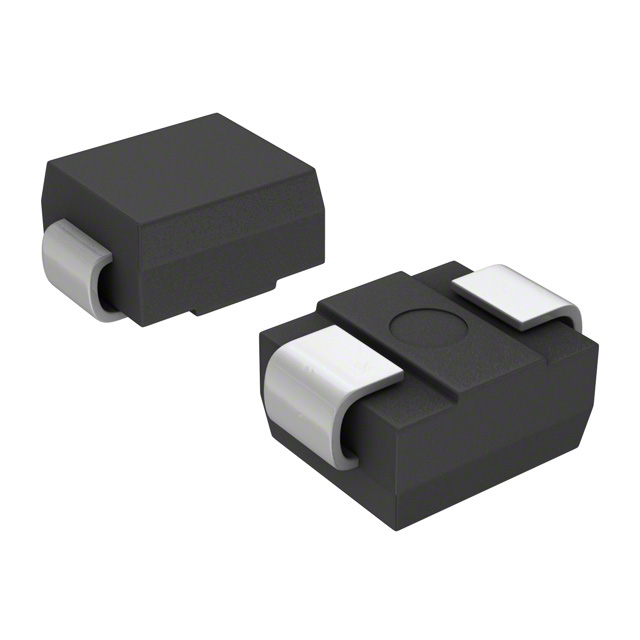

| Part Number | SMBJ12 | SMBJ12 | SMBJ12-E3/52 | SMBJ12-E3/5B |
| Manufacturer | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 600W, 14.8V, 10%, UNIDIRECTIONAL | TVS DIODE 12VWM 20.9VC DO214AA | TVS DIODE 12VWM 22VC DO214AA | TVS DIODE 12VWM 22VC DO214AA |
| Series | Taiwan Semiconductor Corporation | Littelfuse Inc. | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
