SML-LX15GGC-RP-TR

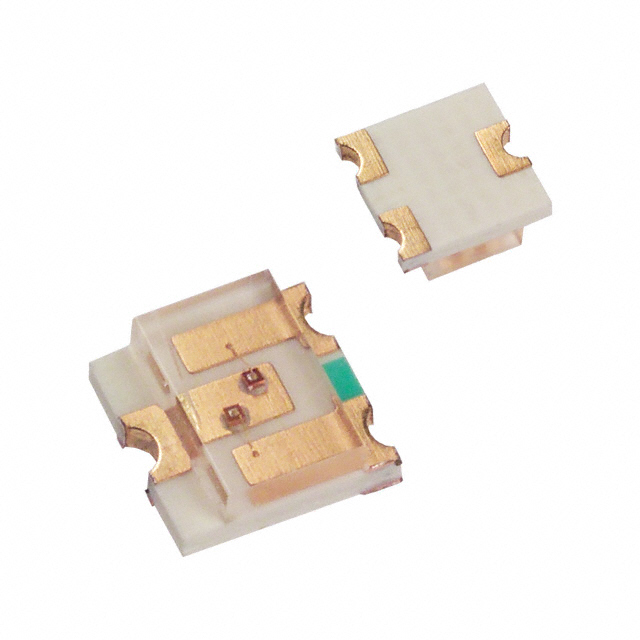

lmages are for reference only.SML-LX15GGC-RP-TR
LED GREEN CLEAR SOT23 SMD
DatasheetTO-236, SC-59, SOT-23-3 variant, 3-SMD
32,727 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green LED Indication - Discrete 2.2V TO-236, SC-59, SOT-23-3 variant, 3-SMD
SML-LX15GGC-RP-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 10mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 3.00mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm |
| Features | - |
| Package / Case | TO-236, SC-59, SOT-23-3 variant, 3-SMD |
| Supplier Device Package | SOT-23 |
| Size / Dimension | 3.00mm L x 3.00mm W |
| Height (Max) | 1.00mm |
| Base Product Number | SML-LX15 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | SML-LX15GGC-TR | SML-LX1206AW-TR | SML-LX1206GC-TR | SML-LX1206GC-TR1 |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN CLEAR SOT23 SMD | LED 605NM AMB WHT DIFF 1206 T/R | LED GREEN CLEAR 1206 SMD | LED 565NM GREEN CLR 1206 T/R |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
