SML-LX2835SISUGSBC
lmages are for reference only.SML-LX2835SISUGSBC
LED RGB CLEAR 2835 SMD
Datasheet4-SMD, J-Lead
41,895 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 2.2V Green, 3.5V Blue 4-SMD, J-Lead
SML-LX2835SISUGSBC
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 80mcd Red, 80mcd Green, 80mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.64mm x 2.14mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.2V Green, 3.5V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 636nm Red, 574nm Green, 430nm Blue |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 2835 |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.80mm |
| Base Product Number | SML-LX2835 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

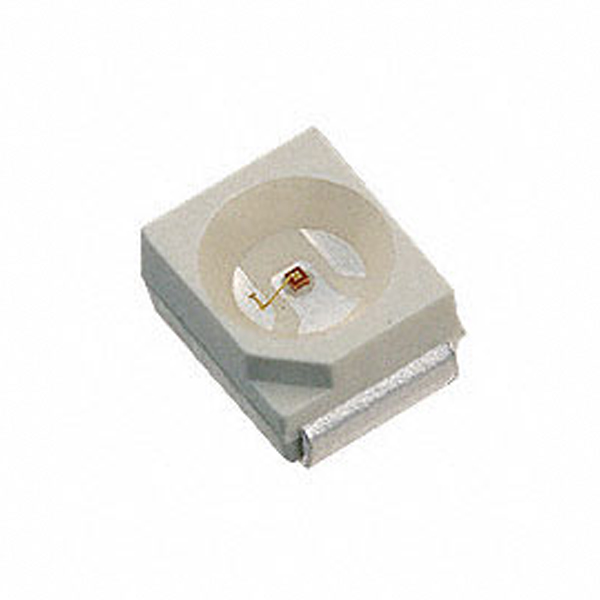

| Part Number | SML-LX2835SISUGUBC | SML-LX2832GC-TR | SML-LX2832GYC-TR | SML-LX2832IC-TR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED/GREEN/BLUE SMD | LED GREEN CLEAR 2832 SMD | LED GRN/YLW CLEAR 2832 SMD | LED RED CLEAR 2832 SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
