SML-LXFT1206SOC-TR

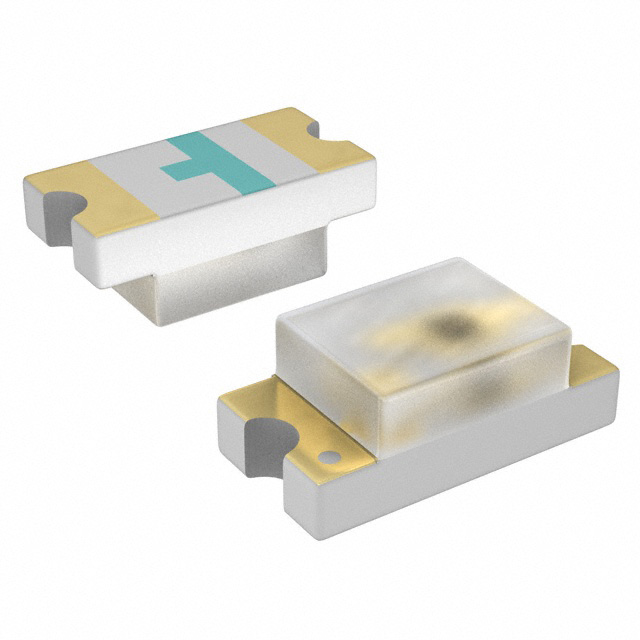

lmages are for reference only.SML-LXFT1206SOC-TR
LED ORANGE CLEAR 1206 SMD
Datasheet1206 (3216 Metric)
30,334 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Orange LED Indication - Discrete 2V 1206 (3216 Metric)
SML-LXFT1206SOC-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Orange |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 75mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.90mm x 1.60mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 610nm |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 0.75mm |
| Base Product Number | SML-LXFT1206 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SML-LXFT1206SBC-TR | SML-LXFT1206SGD-TR | SML-LXFT1206SIC-TR | SML-LXFT1206SUGCTR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED BLUE CLEAR 1206 SMD | LED GREEN DIFFUSED SMD | LED RED CLEAR 1206 SMD | LED GREEN CLEAR SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
