SML-LXIL0603SIC-TR
lmages are for reference only.SML-LXIL0603SIC-TR
LED RED CLEAR TOP VIEW SMD
Datasheet0603 (1608 Metric)
45,373 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red LED Indication - Discrete 2.1V 0603 (1608 Metric)
SML-LXIL0603SIC-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | - |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 1600mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 0.79mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 75° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 630nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.64mm L x 0.84mm W |
| Height (Max) | 1.40mm |
| Base Product Number | SML-LXIL0603 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SML-LXIL0603SYC-TR | SML-LXIL0603UPGCTR | SML-LXIL0603USBCTR | SML-LXIL1618SIC-TR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

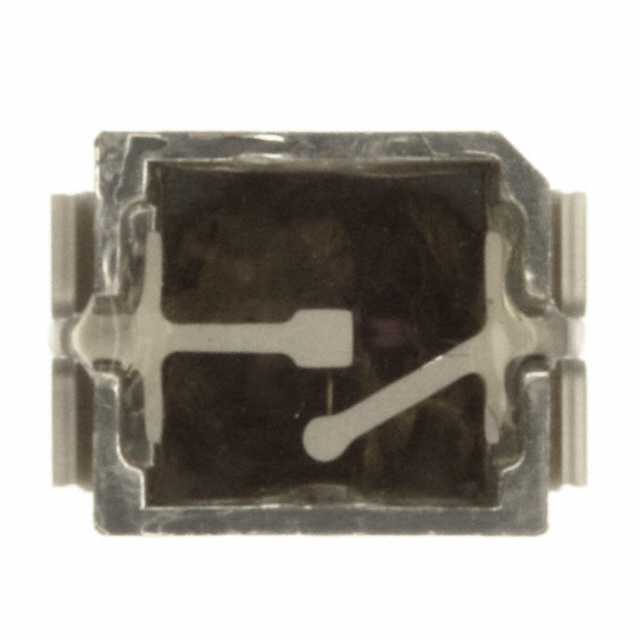

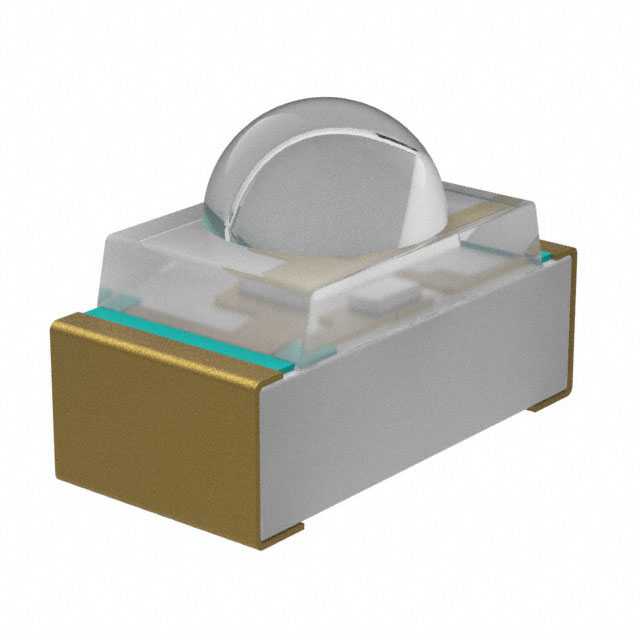

| Description | LED YELLOW CLEAR SMD | LED GREEN CLEAR SMD | LED BLUE CLEAR SMD | LED 625NM RED WTR CLR 4MM SQ SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) |
