SML-LXLC1206SIC-TR

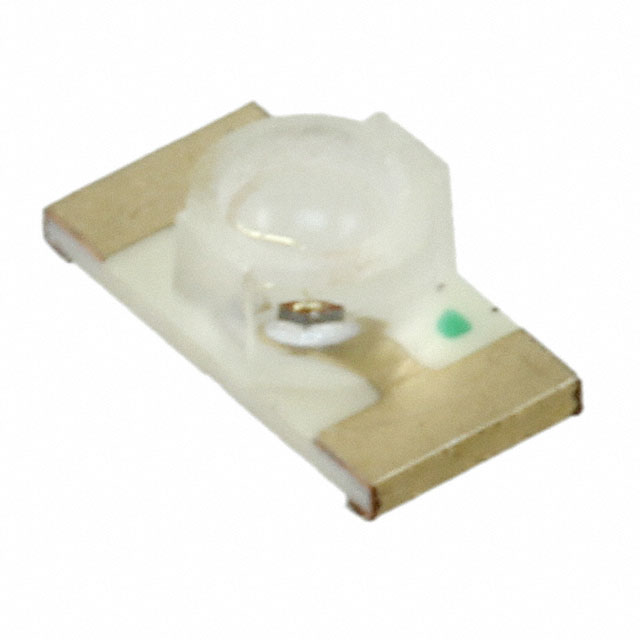

lmages are for reference only.SML-LXLC1206SIC-TR
LED RED CLEAR SMD
Datasheet1206 (3216 Metric)
86,856 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red LED Indication - Discrete 1.95V 1206 (3216 Metric)
SML-LXLC1206SIC-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 550mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 1.60mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 645nm |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Height (Max) | 1.10mm |
| Base Product Number | SML-LXLC1206 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SML-LXLC1206SUGCTR | SML-LXLC1206SYC-TR | SML-LXLC1206USBCTR | SML-010DTT86 |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN CLEAR SMD | LED YELLOW CLEAR SMD | LED BLUE CLEAR SMD | LED ORANGE CLEAR 3020 SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
