SML-LXT0805SIUGUBW

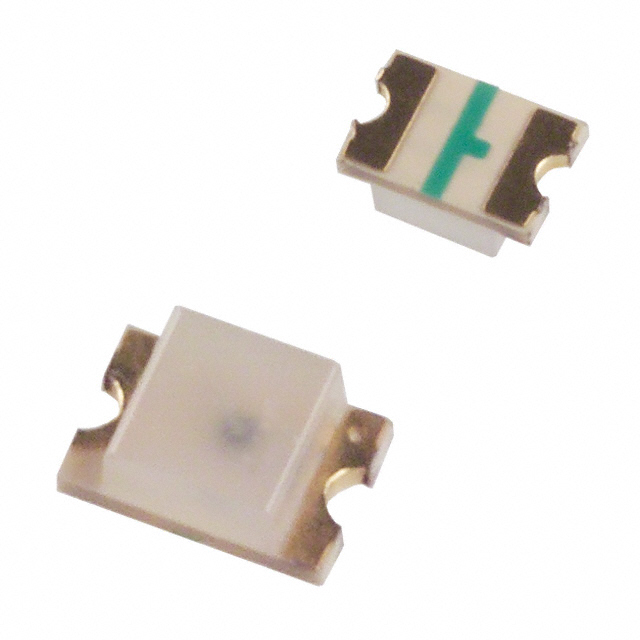

lmages are for reference only.SML-LXT0805SIUGUBW
LED RGB DIFFUSED SMD
Datasheet0805 (2012 Metric)
83,415 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 0805 (2012 Metric)
SML-LXT0805SIUGUBW
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lumex Opto/Components Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | - |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 165mcd Red, 236mcd Green, 104mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.30mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 632nm Red, 520nm Green, 468nm Blue |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Height (Max) | 1.25mm |
| Base Product Number | SML-LXT0805 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | SML-LXT0805SBW-TR | SML-LXT0805SISUGC | SML-LXT0805SRW-TR | SML-LXT0805SUGW-TR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED BLUE DIFFUSED SMD | LED GREEN/RED CLEAR SMD | LED RED DIFFUSED SMD | LED GREEN DIFFUSED SMD |
| Series | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
