SMW2100RJT

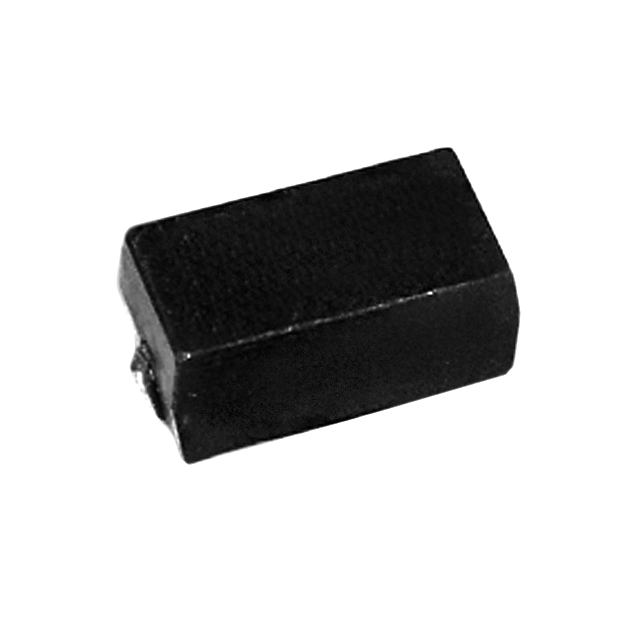

lmages are for reference only.SMW2100RJT
RES SMD 100 OHM 5% 2W 2616
Datasheet2616 (6740 Metric), J-Lead
71,828 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 Ohms ±5% 2W Chip Resistor 2616 (6740 Metric), J-Lead Flame Retardant Coating, Safety Wirewound
SMW2100RJT
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | TE Connectivity Passive Product |
| Series | SM, CGS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 100 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Wirewound |
| Features | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 200°C |
| Package / Case | 2616 (6740 Metric), J-Lead |
| Supplier Device Package | SMD |
| Ratings | - |
| Size / Dimension | 0.264" L x 0.157" W (6.70mm x 4.00mm) |
| Height - Seated (Max) | 0.152" (3.85mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | SMW2 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMW210RJT | SMW2120RJT | SMW212RJT | SMW2150RJT |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 10 OHM 5% 2W 2616 | RES SMD 120 OHM 5% 2W 2616 | RES SMD 12 OHM 5% 2W 2616 | RES SMD 150 OHM 5% 2W 2616 |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
