SMW210RJT

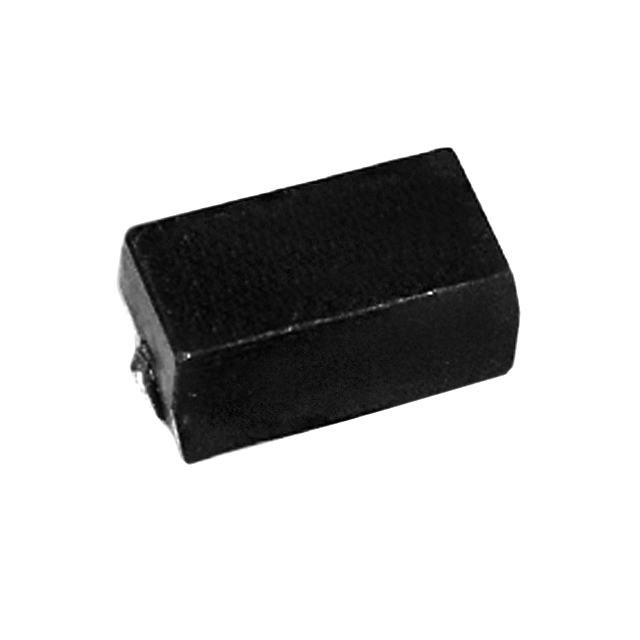

lmages are for reference only.SMW210RJT
RES SMD 10 OHM 5% 2W 2616
Datasheet2616 (6740 Metric), J-Lead
26,541 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 Ohms ±5% 2W Chip Resistor 2616 (6740 Metric), J-Lead Flame Retardant Coating, Safety Wirewound
SMW210RJT
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | TE Connectivity Passive Product |
| Series | SM, CGS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 10 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Wirewound |
| Features | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 200°C |
| Package / Case | 2616 (6740 Metric), J-Lead |
| Supplier Device Package | SMD |
| Ratings | - |
| Size / Dimension | 0.264" L x 0.157" W (6.70mm x 4.00mm) |
| Height - Seated (Max) | 0.152" (3.85mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | SMW2 |
| Product Attribute |  |
 |
 |
 |

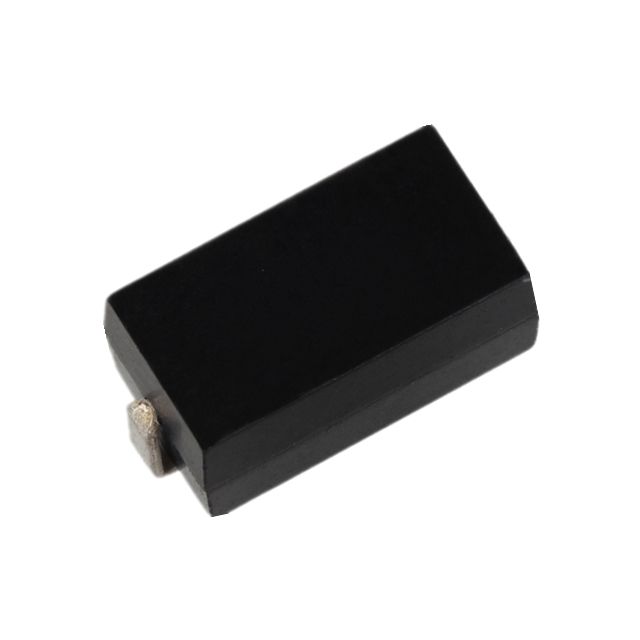

| Part Number | SMW2100RJT | SMW1WL001RFS21 | SMW1WL002RFS21 | SMW1WL005RFS21 |
| Manufacturer | TE Connectivity Passive Product | Aillen | Aillen | Aillen |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 100 OHM 5% 2W 2616 | RES 1W 1 OHM 1% SMD2515 | RES 1W 2 OHM 1% SMD2515 | RES 1W 5 OHM 1% SMD2515 |
| Series | TE Connectivity Passive Product | Aillen | Aillen | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
