SN74AS20D

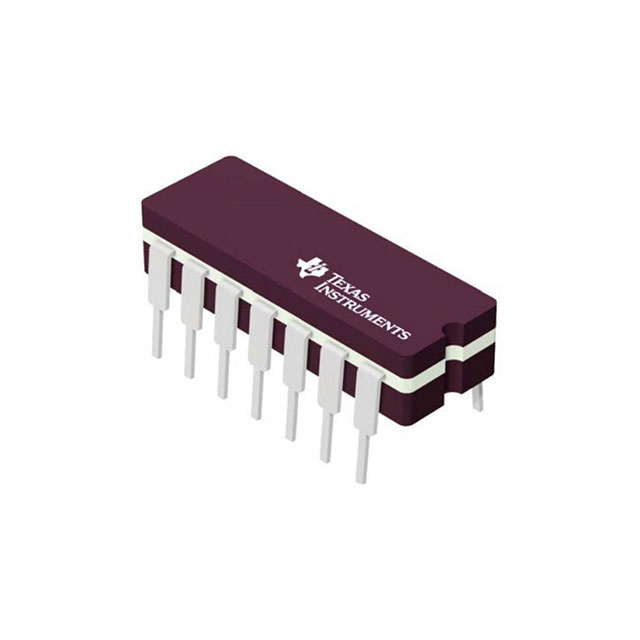

lmages are for reference only.SN74AS20D
IC GATE NAND 2CH 4-INP 14SOIC
Datasheet14-SOIC (0.154", 3.90mm Width)
63,125 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
NAND Gate IC 2 Channel 14-SOIC
SN74AS20D
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Texas Instruments |
| Series | 74AS |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74AS20 |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 2mA, 20mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SN74AS20DB | SN74AS20DR | SN74AS20DRG4 | SN74AS20N |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | Not applicable | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE NAND | IC GATE NAND 2CH 4-INP 14SOIC | IC GATE NAND 2CH 4-INP 14SOIC | IC GATE NAND 2CH 4-INP 14DIP |
| Series | * | 74AS | 74AS | 74AS |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
