Product CatalogPart Number
SP00R6-01WTG
Manufacturer
Littelfuse Inc.Description
TVS DIODE BI-DIR 3A 0.3V 0201
Datasheet
DatasheetPackage
0201 (0603 Metric)
In Stock
64,718 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SP00R6-01WTG
SP00R6-01WTG
lmages are for reference only.Payment Methods
Delivery Services
2.5V (Typ) Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 0201
Quick Inquiry
SP00R6-01WTG
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | SPA® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 300mV (Max) |
| Voltage - Breakdown (Min) | 700mV |
| Voltage - Clamping (Max) @ Ipp | 2.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | USB |
| Capacitance @ Frequency | 0.2pF @ 3GHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|

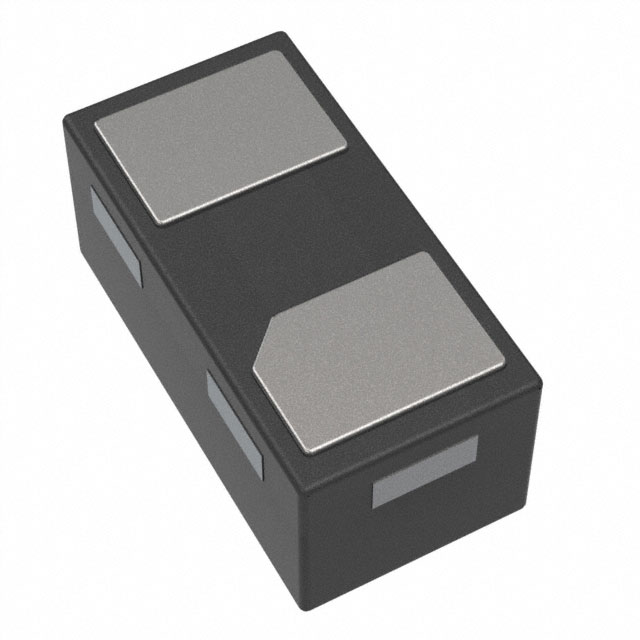

| Part Number | SP0115-01ETG | SP0115-01UTG | SP0201B-ELC-01UTG | SP0201B-ULC-01UTG |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1V 12A 30KV SOD882 BI-DIR TVS | 1V 12A 30KV DFN1610-2L BI-DIR TV | TVS DIODE 7VWM 13VC 0201 | TVS DIODE 7VWM 10VC 0201 |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
