Product CatalogPart Number
SP0201B-ELC-01UTG
Manufacturer
Littelfuse Inc.Description
TVS DIODE 7VWM 13VC 0201
Datasheet
DatasheetPackage
0201 (0603 Metric)
In Stock
20,214 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SP0201B-ELC-01UTG
SP0201B-ELC-01UTG

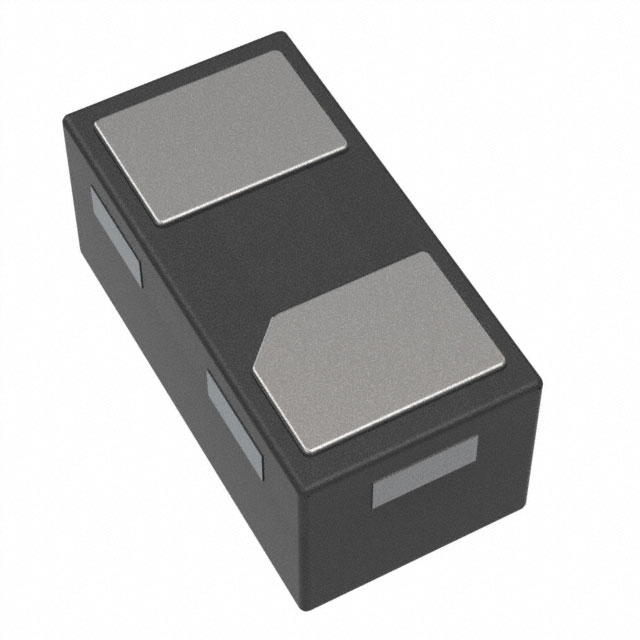

lmages are for reference only.Payment Methods
Delivery Services
13V (Typ) Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 0201
Quick Inquiry
SP0201B-ELC-01UTG
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | SPA® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 7V (Max) |
| Voltage - Breakdown (Min) | 8.8V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 13V (Typ) |
| Current - Peak Pulse (10/1000µs) | 2.5A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.3pF @ 3GHz |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | SP0201B-ULC-01UTG | SP00R6-01WTG | SP0115-01ETG | SP0115-01UTG |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 7VWM 10VC 0201 | TVS DIODE BI-DIR 3A 0.3V 0201 | 1V 12A 30KV SOD882 BI-DIR TVS | 1V 12A 30KV DFN1610-2L BI-DIR TV |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
