SPA-100-32-003-SMA
lmages are for reference only.SPA-100-32-003-SMA
BROADBAND AMP TYPE SMA 500MHZ-10
DatasheetModule, SMA Connectors
17,108 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC General Purpose 500MHz ~ 10GHz Module
SPA-100-32-003-SMA
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Fairview Microwave |
| Series | - |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Frequency | 500MHz ~ 10GHz |
| P1dB | 25dBm |
| Gain | 36dB |
| Noise Figure | 3dB |
| RF Type | General Purpose |
| Voltage - Supply | 10V ~ 12V |
| Current - Supply | 375mA |
| Test Frequency | - |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | Module |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

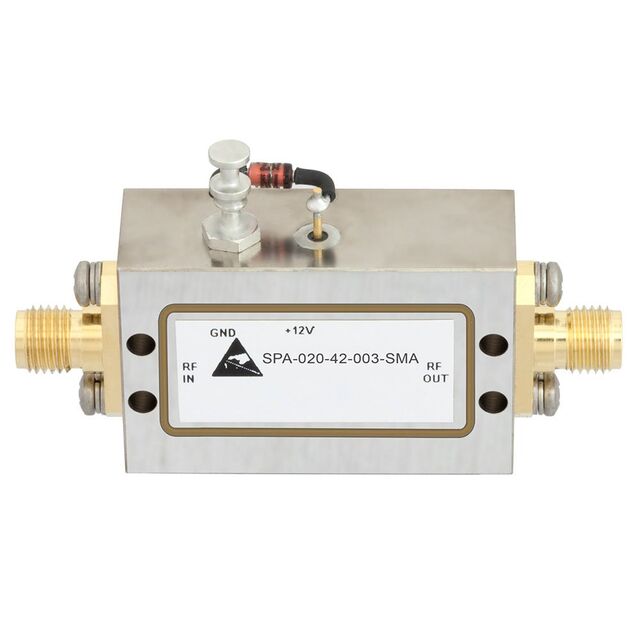

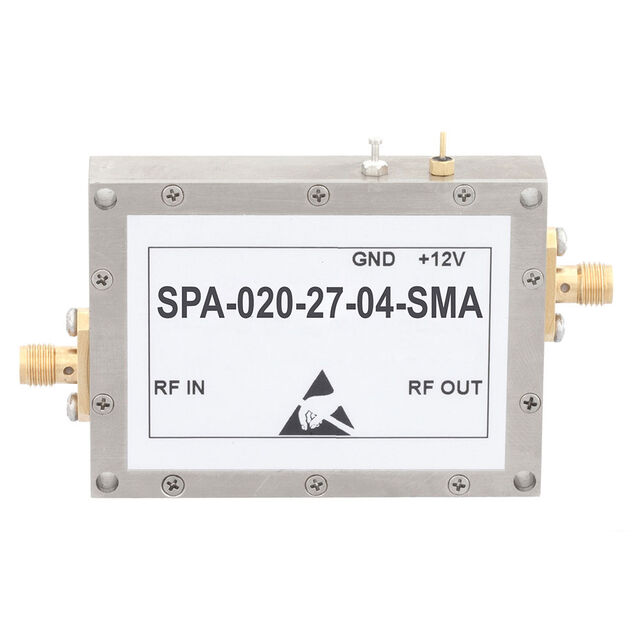

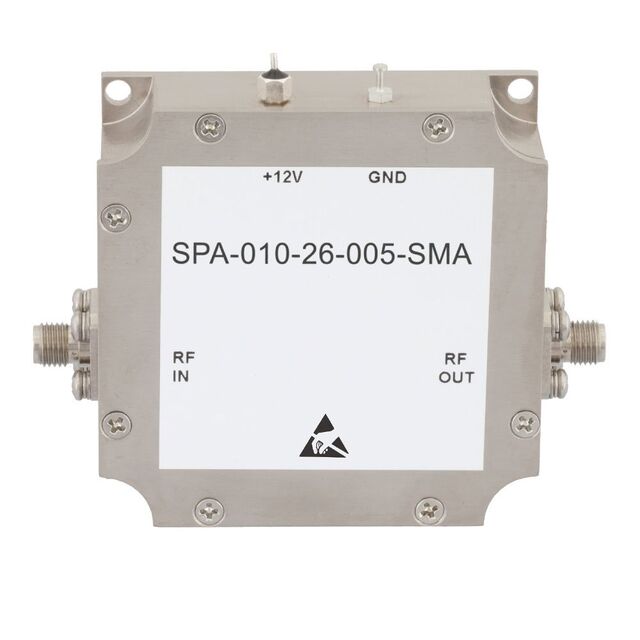

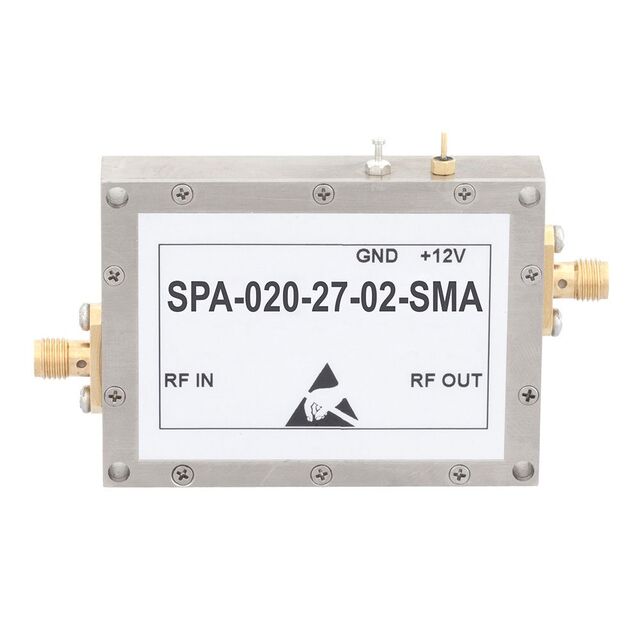

| Part Number | SPA-010-26-005-SMA | SPA-020-27-02-SMA | SPA-020-27-04-SMA | SPA-020-42-003-SMA |
| Manufacturer | Fairview Microwave | Fairview Microwave | Fairview Microwave | Fairview Microwave |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | POWER AMP 50MHZ-1GHZ P1DB SMA | POWER AMP 1000MHZ-2GHZ P1DB SMA | POWER AMP 1000MHZ-2GHZ P1DB SMA | BROADBAND AMP TYPE SMA 500MHZ-2G |
| Series | - | - | - | - |
| Packaging | Bag | Bag | Bag | Bag |
