SPD30P06P
lmages are for reference only.SPD30P06P
MOSFET P-CH 60V 30A TO252-3
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
42,699 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 60 V 30A (Tc) 125W (Tc) Surface Mount PG-TO252-3
SPD30P06P
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | SIPMOS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 75mOhm @ 21.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1.7mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1535 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO252-3 |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | SPD30P |
| Gate Charge (Qg) (Max) @ Vgs | 48 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | SPD30P06PG | SPD30P06PGBTMA1 | SPD01N60C3BTMA1 | SPD02N50C3 |
| Manufacturer | UMW | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||

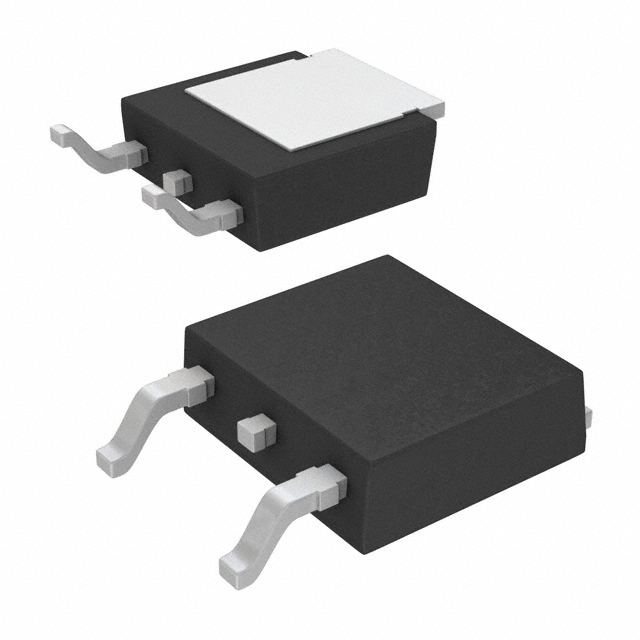

| Description | MOSFET P-CH 60V 30A DPAK | MOSFET P-CH 60V 30A TO252-3 | MOSFET N-CH 650V 800MA TO252-3 | MOSFET N-CH 560V 1.8A TO252-3 |
| Series | * | SIPMOS® | CoolMOS™ | CoolMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
