SPF6001
lmages are for reference only.SPF6001
IC HALF BRIDGE DRIVER 16HSOP
Datasheet16-SOIC (0.295", 7.50mm Width) Exposed Pad
10,075 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Half Bridge (2) Driver General Purpose NMOS, PMOS 16-HSOP
SPF6001
| Category | Integrated Circuits (ICs) - Power Management PMIC - Full Half-Bridge H Bridge Drivers |
| Manufacturer | Sanken Electric USA Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Output Configuration | Half Bridge (2) |
| Applications | General Purpose |
| Interface | - |
| Load Type | Capacitive |
| Technology | NMOS, PMOS |
| Rds On (Typ) | - |
| Current - Output / Channel | - |
| Current - Peak Output | - |
| Voltage - Supply | 4.5V ~ 5.5V, 7V ~ 18V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | 16-HSOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

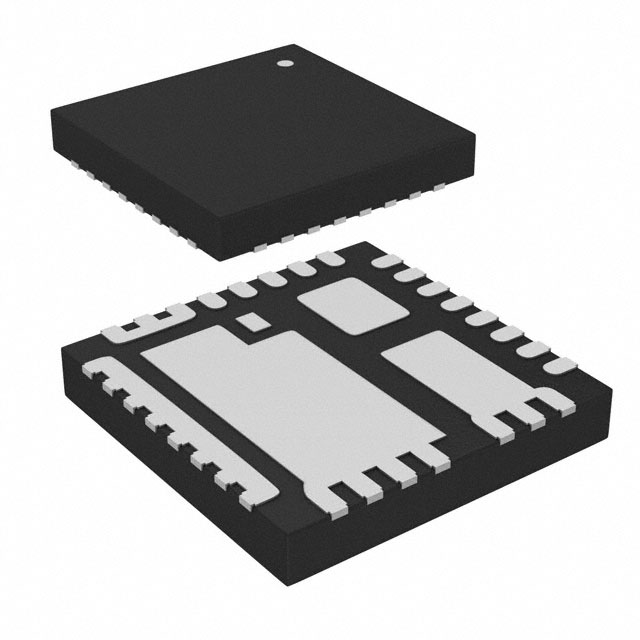

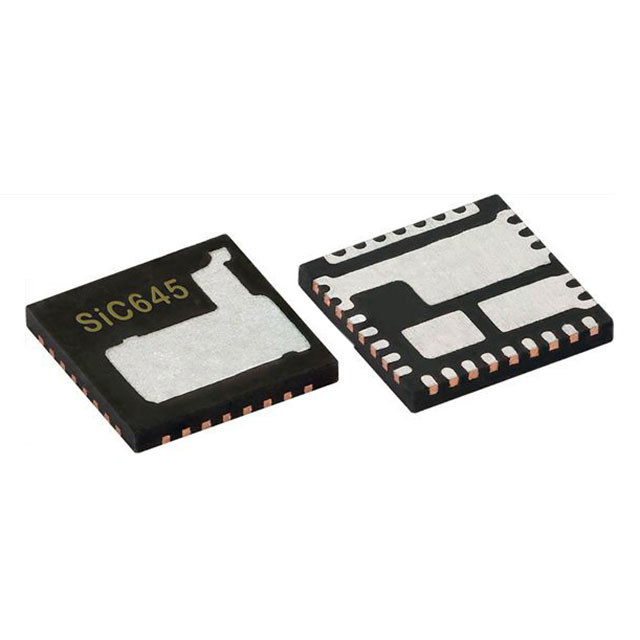

| Part Number | SPF6001 | STK551U3A2A-E | SIC657CD-T1-GE3 | SIC645ER-T1-GE3 |
| Manufacturer | Sanken Electric USA Inc. | onsemi | Vishay Siliconix | Vishay Siliconix |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC HALF BRIDGE DRIVER 16HSOP | IC HALF BRIDGE DRIVER 20A 29SIP | IC HALF BRIDGE DRIVER 50A PPAK | IC HALF BRIDGE DRVR PWR MLP55-32 |
| Series | - | - | VRPower® | VRPower® |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
