SPNH160.XXDE

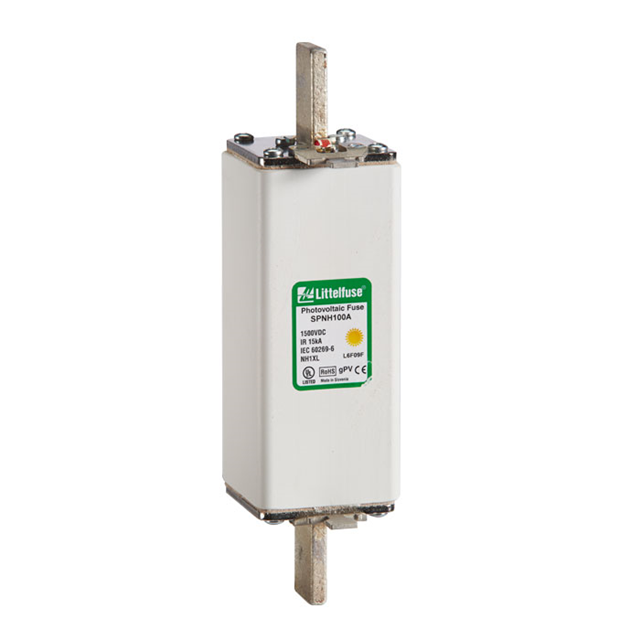

lmages are for reference only.SPNH160.XXDE
1500VDC 160 AMP PHOTOVOLTAIC FUS
DatasheetRectangular, Blade
43,947 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
160A 1.5 kVDC Fuse Rectangular Bolt Mount
SPNH160.XXDE
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POWR-GARD® SPNH |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Rectangular |
| Current Rating (Amps) | 160A |
| Voltage Rating - AC | - |
| Response Time | Fast Blow |
| Applications | Solar (Photovoltaic) |
| Features | - |
| Class | - |
| Approval Agency | CE, gPV, IEC, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 30kA |
| Package / Case | Rectangular, Blade |
| Size / Dimension | 5.165" L x 2.008" W x 2.008" H (131.20mm x 51.00mm x 51.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1.5 kVDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 19000.0 |
| DC Cold Resistance | 0.00085 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | SPNH160.XXDEMS | SPNH160.XXDL | SPNH160.XXDLMS | SPNH160.X |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1500VDC 160 AMP PV FUSE W/MS INT | 1500VDC 160 AMP PHOTOVOLTAIC FUS | 1500VDC 160 AMP PV FUSE W/MS INT | 1500VDC 160 AMP PHOTOVOLTAIC FUS |
| Series | POWR-GARD® SPNH | POWR-GARD® SPNH | POWR-GARD® SPNH | POWR-GARD® SPNH |
| Packaging | Box | Box | Box | Box |
