SSM3K15F,LF

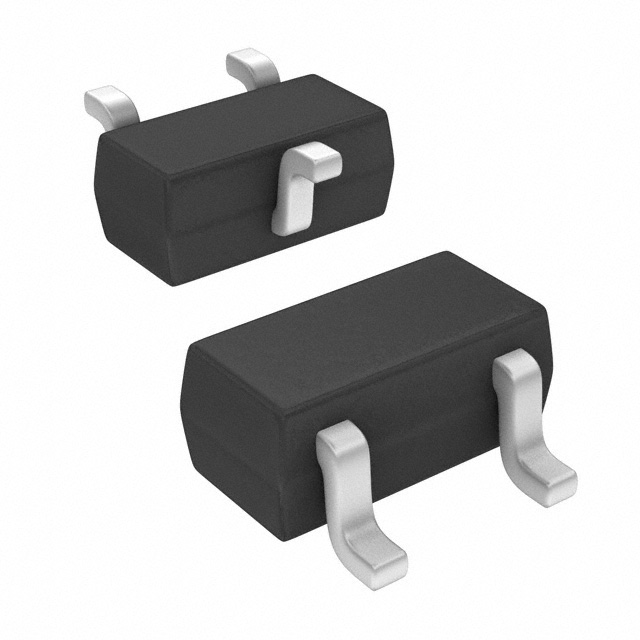

lmages are for reference only.SSM3K15F,LF
MOSFET N-CH 30V 100MA S-MINI
DatasheetTO-236-3, SC-59, SOT-23-3
46,987 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 100mA (Ta) 200mW (Ta) Surface Mount S-Mini
SSM3K15F,LF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | π-MOSIV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V |
| Rds On (Max) @ Id, Vgs | 4Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 1.5V @ 100µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7.8 pF @ 3 V |
| FET Feature | - |
| Power Dissipation (Max) | 200mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | S-Mini |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | SSM3K15 |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
