SSM3K62TU,LXHF

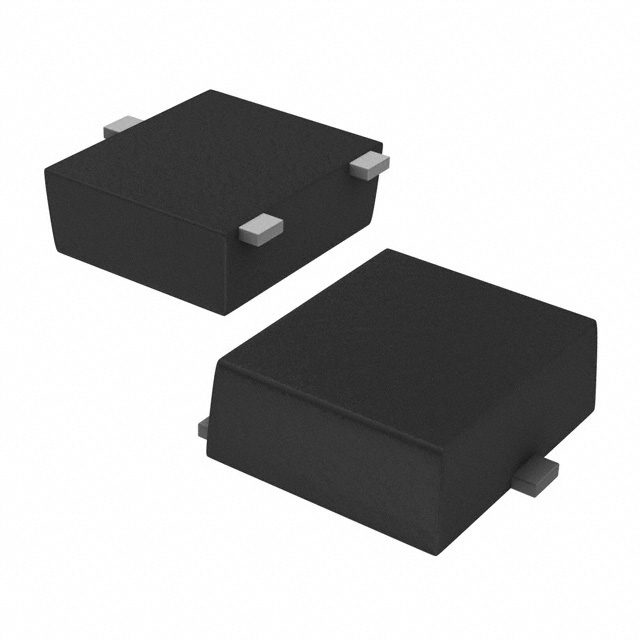

lmages are for reference only.SSM3K62TU,LXHF
SMOS LOW RON NCH VDSS:20V ID:0.8
Datasheet3-SMD, Flat Leads
76,976 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 800mA (Ta) 500mW (Ta) Surface Mount UFM
SSM3K62TU,LXHF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | U-MOSVII-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 57mOhm @ 800mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 177 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UFM |
| Package / Case | 3-SMD, Flat Leads |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 2 nC @ 4.5 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
.jpg "SSM3J108TU(TE85L)") |
| Part Number | SSM3K62TU,LF | SSM3H137TU,LF | SSM3J09FU,LF | SSM3J108TU(TE85L) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 20V 800MA UFM | MOSFET N-CH 34V 2A UFM | MOSFET P-CH 30V 200MA USM | MOSFET P-CH 20V 1.8A UFM |
| Series | U-MOSVII-H | U-MOSIV | - | U-MOSIII |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
