SSM3K7002KFU,LF
lmages are for reference only.SSM3K7002KFU,LF
MOSFET N-CH 60V 400MA USM
DatasheetSC-70, SOT-323
23,787 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 60 V 400mA (Ta) 150mW (Ta) Surface Mount USM
SSM3K7002KFU,LF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | U-MOSVII-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 100mA, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 40 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | USM |
| Package / Case | SC-70, SOT-323 |
| Base Product Number | SSM3K7002 |
| Gate Charge (Qg) (Max) @ Vgs | 0.6 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

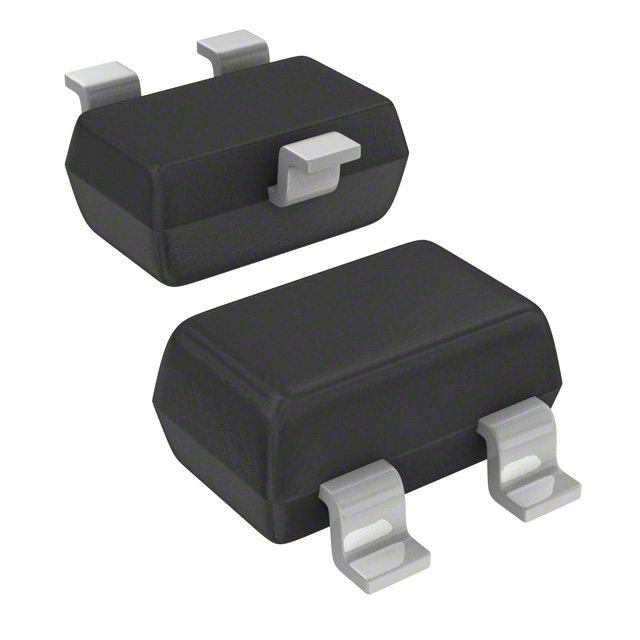

| Part Number | SSM3K7002KFU,LXH | SSM3K7002BF,LF | SSM3K7002BS,LF | SSM3K7002BSU,LF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | |||
| Description | SMOS LOW RON NCH IO: 0.4A VDSS: | MOSFET N-CH 60V 200MA SC59 | MOSFET N-CH 60V 200MA S-MINI | MOSFET N-CH 60V 200MA USM |
| Series | - | U-MOSIV | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
