SSM6N62TU,LF
lmages are for reference only.SSM6N62TU,LF
MOSFET 2N-CH 20V 0.8A UF6
Datasheet6-SMD, Flat Leads
61,537 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 800mA (Ta) 500mW (Ta) Surface Mount UF6
SSM6N62TU,LF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 1.2V Drive |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Ta) |
| Rds On (Max) @ Id, Vgs | 85mOhm @ 800mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 177pF @ 10V |
| Power - Max | 500mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | UF6 |
| Base Product Number | SSM6N62 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

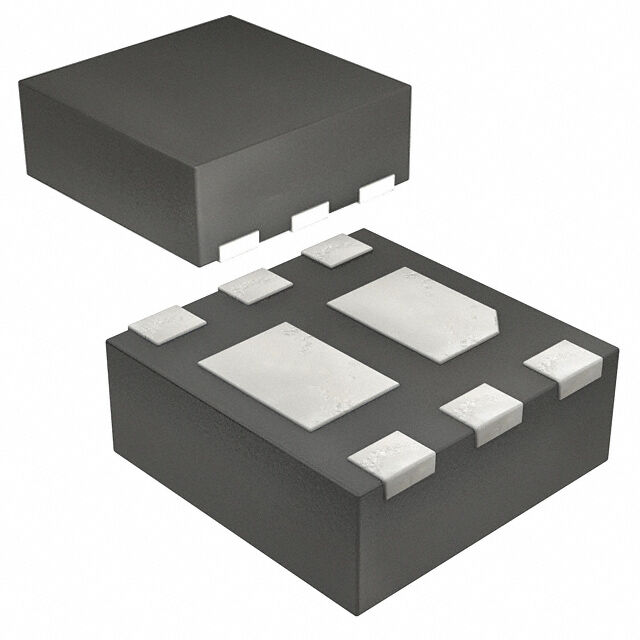

| Part Number | SSM6N62TU,LXHF | SSM6N61NU,LF | SSM6N67NU,LF | SSM6N68NU,LF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 20V 0.8A UF6 | MOSFET 2N-CH 20V 4A 6UDFNB | MOSFET 2N-CH 30V 4A 6DFN | MOSFET 2N-CH 30V 4A 6DFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
