SSM6N7002KFU,LF
lmages are for reference only.SSM6N7002KFU,LF
MOSFET 2N-CH 60V 0.3A US6
Datasheet6-TSSOP, SC-88, SOT-363
46,993 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 60V 300mA 285mW Surface Mount US6
SSM6N7002KFU,LF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 300mA |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 100mA, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 40pF @ 10V |
| Power - Max | 285mW |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | US6 |
| Base Product Number | SSM6N7002 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

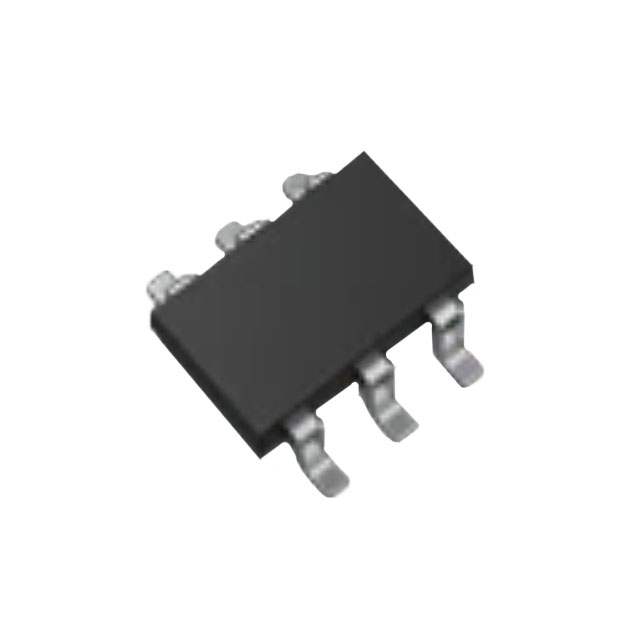

| Part Number | SSM6N7002KFU,LXH | SSM6N7002BFE,LM | SSM6N7002BFU(T5L,F | SSM6N7002BFU,LF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFET 2N-CH 60V 0.3A US6 | MOSFET 2N-CH 60V 0.2A ES6 | MOSFET 2N-CH 60V 0.2A US6 | MOSFET 2N-CH 60V 0.2A US6 |
| Series | U-MOSVII-H | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
