SSQE48T20033-NAA0G

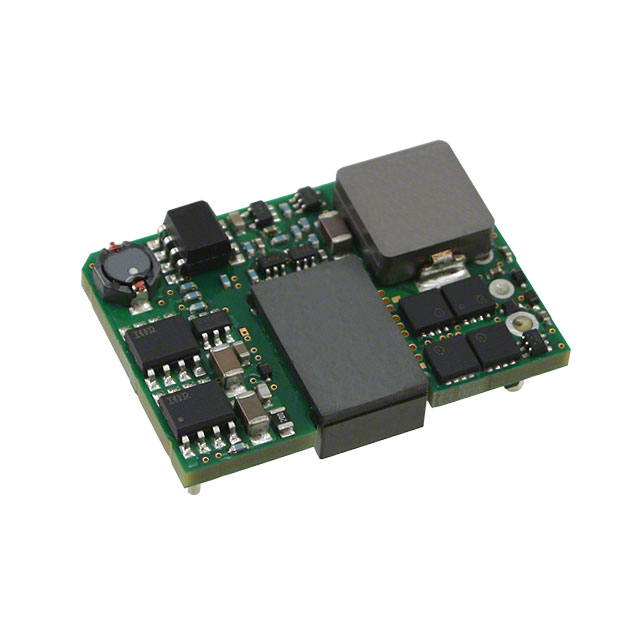

lmages are for reference only.SSQE48T20033-NAA0G
DC DC CONVERTER 3.3V 66W
Datasheet8-DIP Module, 1/16 Brick
80,173 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 20A 36V - 75V Input
SSQE48T20033-NAA0G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | SSQE48 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 66 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/16 Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | SSQE48 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute | |
 |
 |
|
| Part Number | SSQE48T20033-NAAN | SSQE48T20033-NAANG | SSQE48T20033-NABNG | SSQE48T20033-NAC0G |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 66W | DC DC CONVERTER 3.3V 66W | DC DC CONVERTER 3.3V 66W | DC DC CONVERTER 3.3V 66W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Tray | Bulk |
