STC5NF20V

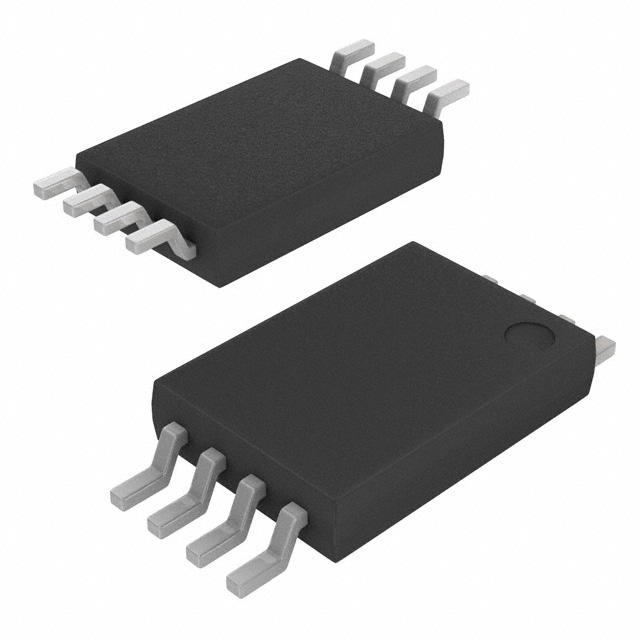

lmages are for reference only.STC5NF20V
MOSFET 2N-CH 20V 5A 8TSSOP
Datasheet8-TSSOP (0.173", 4.40mm Width)
21,944 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 5A 1.5W Surface Mount 8-TSSOP
STC5NF20V
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | STMicroelectronics |
| Series | STripFET™ II |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 2.5A, 4.5V |
| Vgs(th) (Max) @ Id | 600mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 460pF @ 15V |
| Power - Max | 1.5W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | STC5NF |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
.jpg "TPC8211(TE12L,Q,M)") |
| Part Number | STC5DNF30V | STC5NF30V | STC6NF30V | TPC8211(TE12L,Q,M) |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 30V 4.5A 8TSSOP | MOSFET 2N-CH 30V 5A 8TSSOP | MOSFET 2N-CH 30V 6A 8TSSOP | MOSFET 2N-CH 30V 5.5A 8SOP |
| Series | STripFET™ | STripFET™ II | STripFET™ II | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
