STGW20IH125DF
Manufacturer
STMicroelectronicsDescription
IGBT 1250V 40A 259W TO-247
Datasheet
DatasheetPackage
TO-247-3
In Stock
42,124 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
STGW20IH125DF
STGW20IH125DF
lmages are for reference only.Payment Methods
Delivery Services

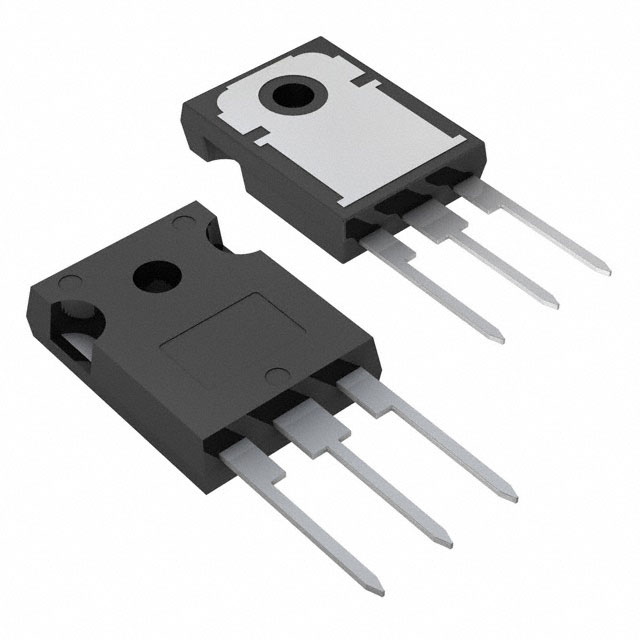

IGBT Trench Field Stop 1250 V 40 A 259 W Through Hole TO-247
Quick Inquiry
STGW20IH125DF
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | STMicroelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1250 V |
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 15A |
| Power - Max | 259 W |
| Switching Energy | 410µJ (off) |
| Input Type | Standard |
| Gate Charge | 68 nC |
| Td (on/off) @ 25°C | -/106ns |
| Test Condition | 600V, 15A, 10Ohm, 15V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 |
| Reverse Recovery Time (trr) | - |
| Base Product Number | STGW20 |
