STP36NF06L
Manufacturer
STMicroelectronicsDescription
MOSFET N-CH 60V 30A TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
91,656 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
STP36NF06L
STP36NF06L
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 60 V 30A (Tc) 70W (Tc) Through Hole TO-220
Quick Inquiry
STP36NF06L
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | STMicroelectronics |
| Series | STripFET™ II |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±18V |
| Input Capacitance (Ciss) (Max) @ Vds | 660 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 70W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
| Base Product Number | STP36 |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

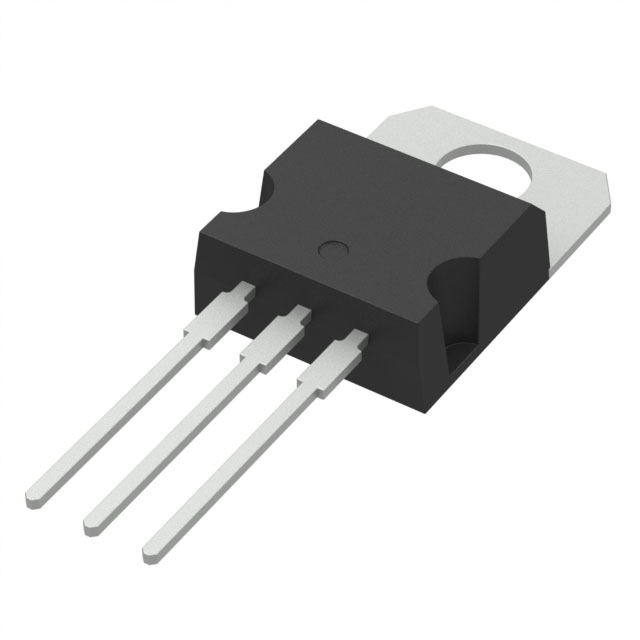

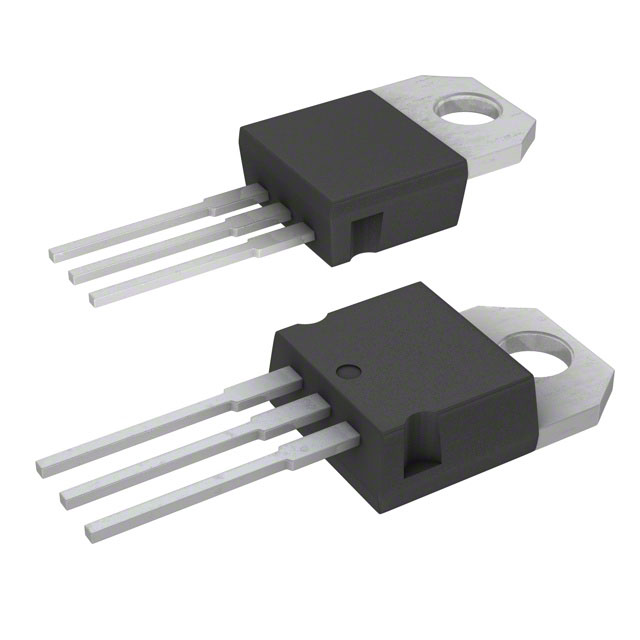

| Part Number | STP36NF06 | STP36NF06FP | STP300NH02L | STP30N10F7 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 60V 30A TO220AB | MOSFET N-CH 60V 18A TO220FP | MOSFET N-CH 24V 120A TO220AB | MOSFET N-CH 100V 32A TO220AB |
| Series | STripFET™ II | STripFET™ II | STripFET™ | STripFET™ |
| Packaging | Tube | Tube | Tube | Tube |
