TCF20RNW
lmages are for reference only.TCF20RNW
CUBEFUSE, TCFRNW 20A NON-IND
DatasheetBlade Type, Module
14,510 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20A 690 VAC Fuse Rectangular Requires Holder
TCF20RNW
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Requires Holder |
| Fuse Type | Rectangular |
| Current Rating (Amps) | 20A |
| Voltage Rating - AC | 690 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | CF |
| Approval Agency | CE, CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 50kA |
| Package / Case | Blade Type, Module |
| Size / Dimension | - |
| Base Product Number | - |
| Voltage Rating - DC | - |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

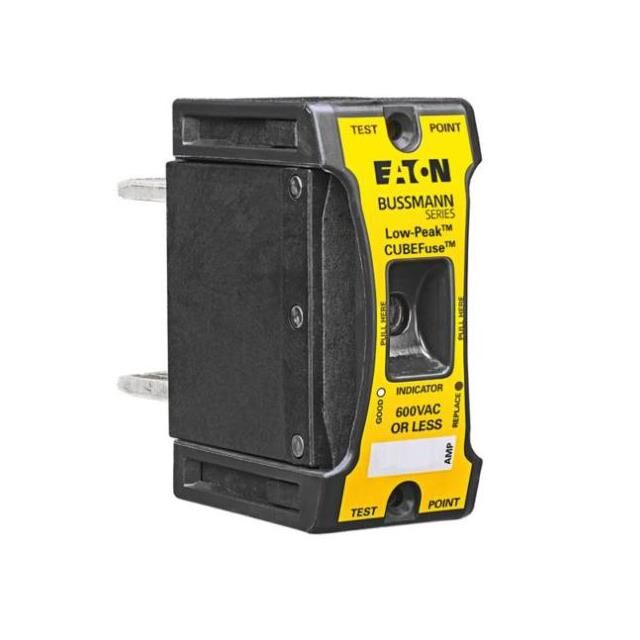

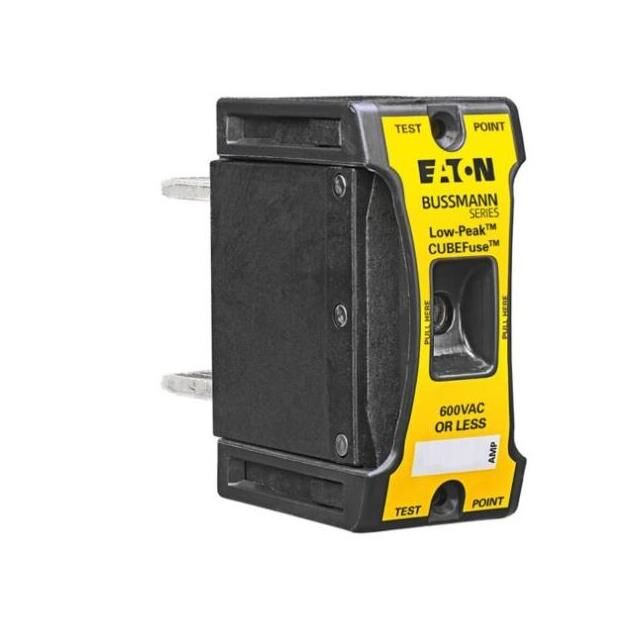

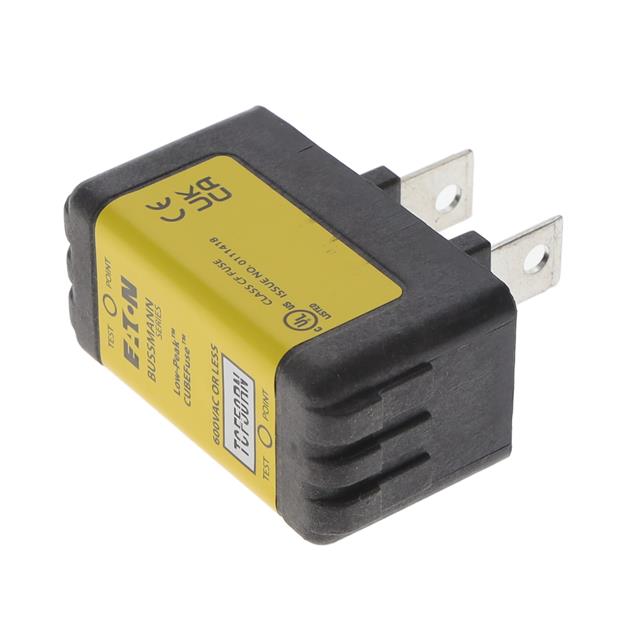

| Part Number | TCF200 | TCF200RN | TCF20RN | TCF225 |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | |||
| Description | TIME DELAY CUBEFUSE 200A IND | TIME DELAY CUBEFUSE 200A NON-IND | FUSE RECT 20A 600VAC/300VDC | CUBEFuse 225 Amp |
| Series | TCF | TCF | CUBEFuse™ TCF | CUBEFuse™ TCF |
| Packaging | Bulk | Bulk | Bulk | Bulk |
