Product CatalogPart Number
TGL41-110A
Manufacturer
Diotec SemiconductorDescription
TVS DIODE 94VWM 152VC DO-213AB
Datasheet
DatasheetPackage
DO-213AB, MELF
In Stock
82,595 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TGL41-110A
TGL41-110A
lmages are for reference only.Payment Methods
Delivery Services
152V Clamp 2.7A Ipp Tvs Diode Surface Mount DO-213AB (MELF)
Quick Inquiry
TGL41-110A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 94V |
| Voltage - Breakdown (Min) | 105V |
| Voltage - Clamping (Max) @ Ipp | 152V |
| Current - Peak Pulse (10/1000µs) | 2.7A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | DO-213AB (MELF) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | TGL41-110A-E3/96 | TGL41-110A-E3/97 | TGL41-110CA | TGL41-10-E3/96 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 94VWM 152VC GL41 | TVS DIODE 94VWM 152VC GL41 | TVS DIODE 94VWM 152VC DO-213AB | TVS DIODE 8.1VWM 15VC GL41 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products

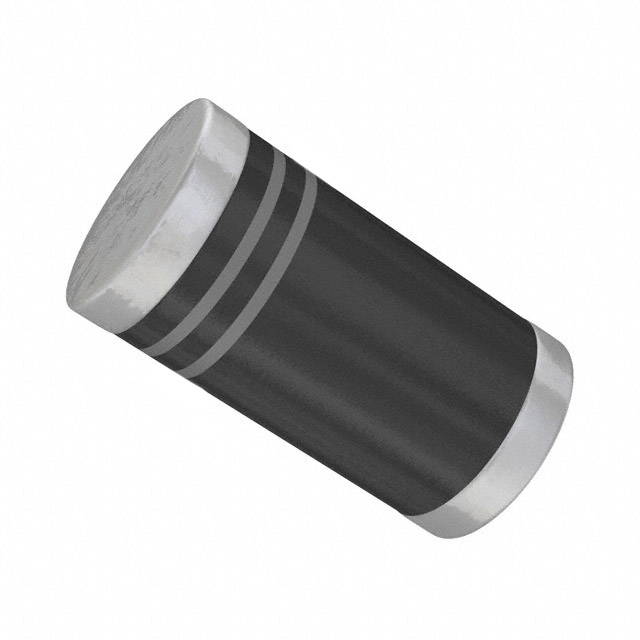

TGL41-10-E3/96
Vishay General Semiconductor - Diodes Division
TGL41-10-E3/97
Vishay General Semiconductor - Diodes Division
TGL41-100A
Diotec Semiconductor
TGL41-100A-E3/96
Vishay General Semiconductor - Diodes Division
TGL41-100A-E3/97
Vishay General Semiconductor - Diodes Division
TGL41-100CA
Diotec Semiconductor

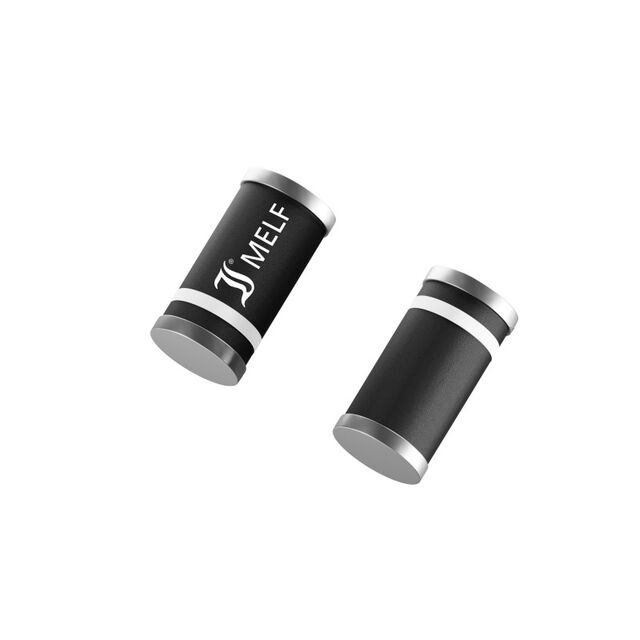

TGL41-10A
