TGL41-12-E3/96
lmages are for reference only.TGL41-12-E3/96
TVS DIODE 9.72VWM 17.3VC GL41
DatasheetDO-213AB, MELF
54,501 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
17.3V Clamp 23.1A Ipp Tvs Diode Surface Mount DO-213AB (GL41)
TGL41-12-E3/96
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 9.72V |
| Voltage - Breakdown (Min) | 10.8V |
| Voltage - Clamping (Max) @ Ipp | 17.3V |
| Current - Peak Pulse (10/1000µs) | 23.1A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | DO-213AB (GL41) |
| Base Product Number | TGL41 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

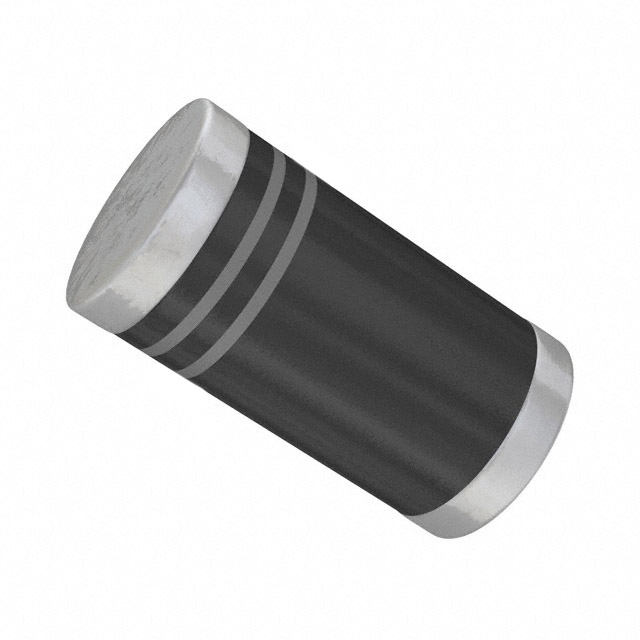

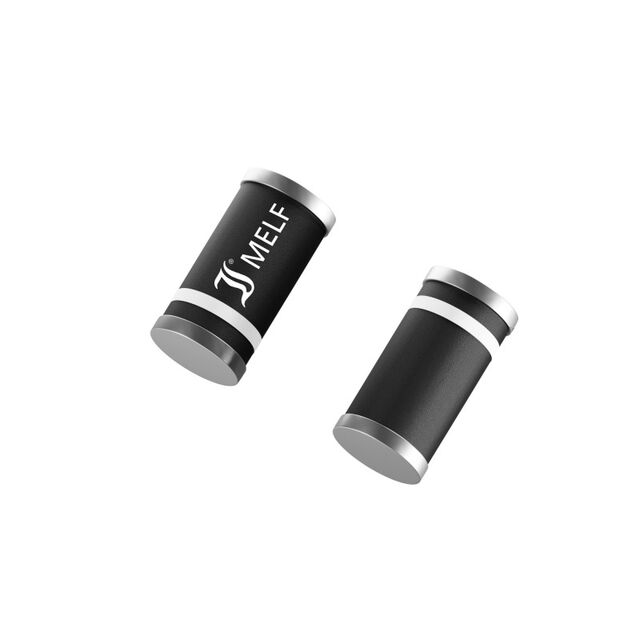

| Part Number | TGL41-12-E3/97 | TGL41-120-E3/96 | TGL41-120-E3/97 | TGL41-120A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 9.72VWM 17.3VC GL41 | TVS DIODE 97.2VWM 173VC GL41 | TVS DIODE 97.2VWM 173VC GL41 | TVS DIODE 102VWM 165VC DO-213AB |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
