TGL41-300A

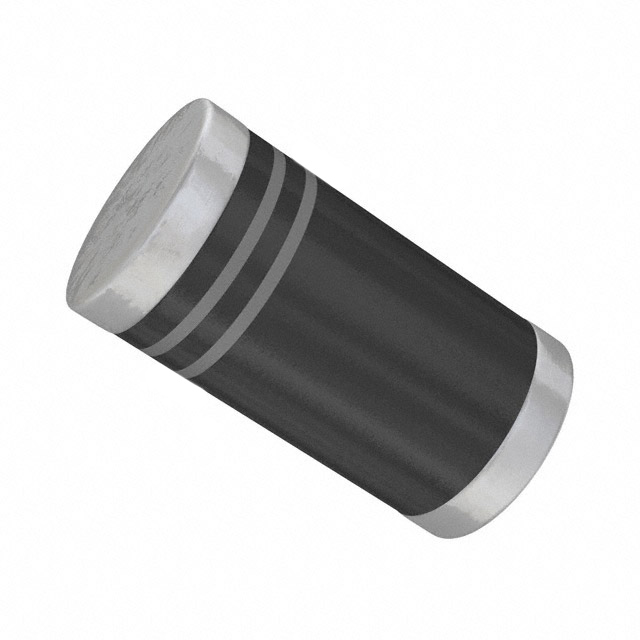

lmages are for reference only.TGL41-300A
TVS DIODE 256VWM 414VC DO-213AB
DatasheetDO-213AB, MELF
43,751 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
414V Clamp 1A Ipp Tvs Diode Surface Mount DO-213AB (MELF)
TGL41-300A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 256V |
| Voltage - Breakdown (Min) | 285V |
| Voltage - Clamping (Max) @ Ipp | 414V |
| Current - Peak Pulse (10/1000µs) | 1A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | DO-213AB (MELF) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TGL41-300CA | TGL41-30-E3/96 | TGL41-30-E3/97 | TGL41-30A |
| Manufacturer | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 256VWM 414VC DO-213AB | TVS DIODE 24.3VWM 43.5VC GL41 | TVS DIODE 24.3VWM 43.5VC GL41 | TVS MELF 150DEG 25.6V 400W |
| Series | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Cut Tape (CT)-->Bulk |
