TLE4945L
lmages are for reference only.TLE4945L
MAGNETIC SWITCH BIPOLAR SSO-3-2
Datasheet3-SSIP, SSO-3-02
84,086 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Switch Bipolar Switch Open Collector Hall Effect PG-SSO-3-2
TLE4945L
| Category | Sensors, Transducers - Magnetic Sensors - Switches Solid State |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | |
| Function | Bipolar Switch |
| Technology | Hall Effect |
| Polarization | North Pole, South Pole |
| Sensing Range | 6mT Trip, -6mT Release |
| Test Condition | 25°C |
| Voltage - Supply | 3.8V ~ 24V |
| Current - Supply (Max) | 8mA |
| Current - Output (Max) | 100mA |
| Output Type | Open Collector |
| Features | Temperature Compensated |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-SSO-3-2 |
| Package / Case | 3-SSIP, SSO-3-02 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

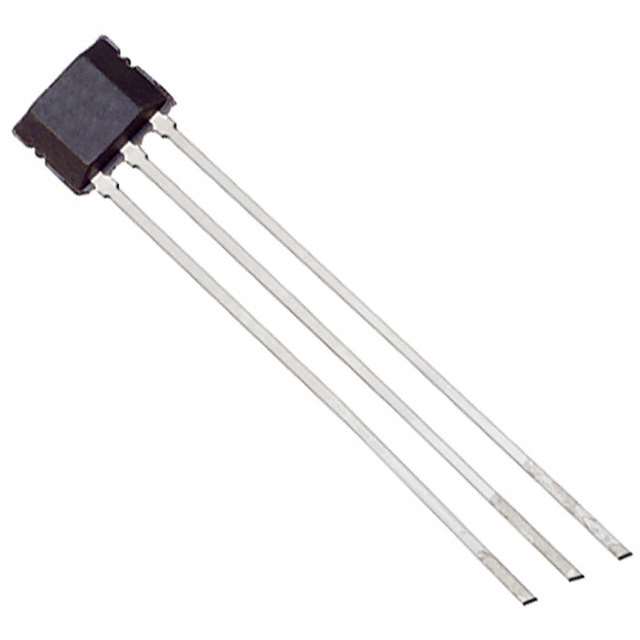

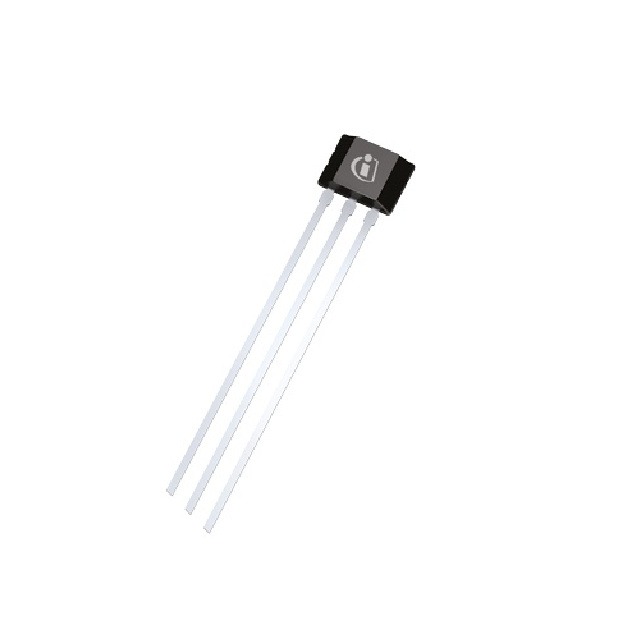

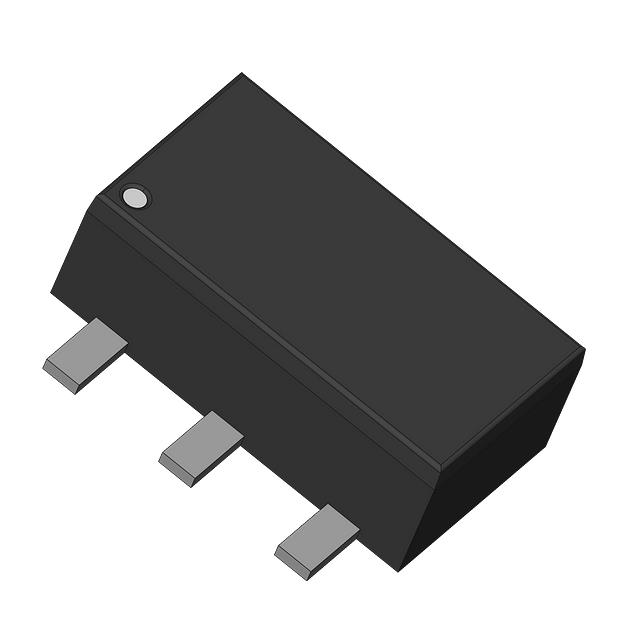

| Part Number | TLE4945-2G | TLE4945-2L | TLE49452GMELCOHUMA1 | TLE49452LHALA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | Not applicable | ROHS3 Compliant | ||
| Description | MAGNETIC SWITCH BIPOLAR SOT89-3 | MAGNETIC SWITCH BIPOLAR SSO-3-2 | MAGNETIC SWITCH HALL EFFECT SENS | MAGNETIC SWITCH BIPOLAR 3SSO |
| Series | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tape & Reel (TR) | Tape & Box (TB) | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
