TLP170A(F)
lmages are for reference only.TLP170A(F)
SSR RELAY SPST-NO 400MA 0-60V
Datasheet4-SMD, Gull Wing
78,303 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing
TLP170A(F)
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLP170A |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.15VDC |
| Voltage - Load | 0 V ~ 60 V |
| Load Current | 400 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -25°C ~ 70°C |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Approval Agency | cULus, DNV, TUV, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | TLP170 |
| On-State Resistance (Max) | 2 Ohms |
| Product Attribute | .jpg "TLP170A(TP,F)") |
 |
 |
 |

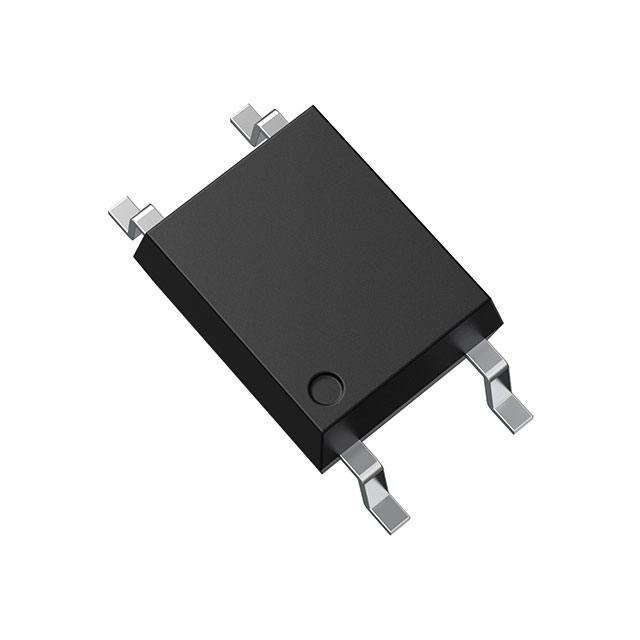

| Part Number | TLP170A(TP,F) | TLP170AM(E | TLP170AM(TPL,E | TLP170AM(V4TPL,E |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SSR RELAY SPST-NO 400MA 0-60V | SSR RELAY SPST-NO 400MA 0-60V | SSR RELAY SPST-NO 700MA 0-60V | SSR RELAY SPST-NO 700MA 0-60V |
| Series | TLP170A | TLP170AM | TLP170AM | TLP170AM |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Recommended Products

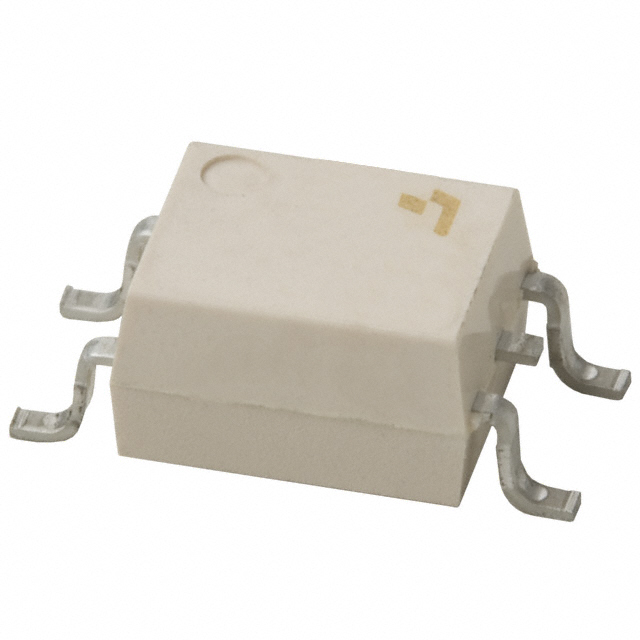

.jpg "TLP170D(F)")
